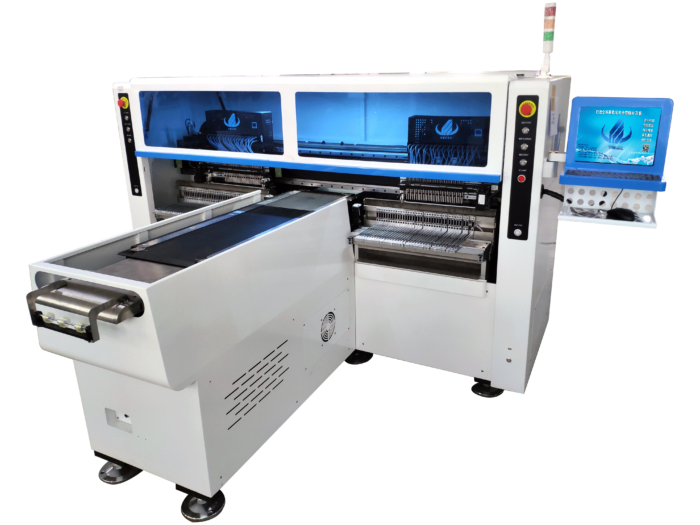

ETON T9 wireless magnetic levitation ultra-high speed placement machine Pick&Place machine

ETON launched the HT-T9 magnetic levitation wireless placement machine, which can mount flexible light strips of unlimited length. It is driven by a high-end magnetic levitation motor, and the speed, accuracy and stability have been greatly improved. The placement speed exceeds 250,000 points/hour. Define the speed standard for high-speed placement machines.

Enquiry
Categories: ,
Description

HT-T9 technical parameters:

Dimensions:long:3100mm Width:2300mm high:1550mm

gross weight:1700Kg

Soft light strip

PCB size:250mm*any length

PCB board Thickness: 0.5 to 1.5mm

PCB board fixing method:Adjustable pressure pneumatic

Chip method:Group pick group place

operating system:Windows 7

software:Independent research and development

monitor:touch LED display

input device:keyboard, mouse

visual system :Visual alignment, MARK correction

number of cameras:Five sets of imported cameras

Repeatability:±0.02mm

patch height:≤5mm

place speed:250000 CPH

Mounting parts range:

With lamp beads 3014/3020/3528/5050 or resistors, capacitors and bridge rectifier, etc.

Component span

0.5mm

The number of feeders that can be placed

68pcs

Number of nozzles

68pcs

using electric

380AC 50Hz

power supply

6KW

use environment

23℃±3℃

Rail drive

1000mm

transfer speed

＞500mm/sec

Transmission direction

One-way (left→right or right→left)

transmission method

online

Targeting

optics

air pressure

0.4-0.6mpa

electrical control

ETON independent research and development

Motion control card module 1 set

ETON independent research and development

XY axis drive mode

High-end magnetic levitation motor + servo motor

Feeding method

Dual motor electronic feeder

Shipping & Delivery

MAECENAS IACULIS

Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.

ADIPISCING CONVALLIS BULUM

  • Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
  • Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
  • Diam parturient dictumst parturient scelerisque nibh lectus.

Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.

Reviews

There are no reviews yet.

Be the first to review “ETON T9 wireless magnetic levitation ultra-high speed placement machine Pick&Place machine”

Your email address will not be published. Required fields are marked *

Related products

SMT Samsung Mounter SM482 Plus 482

,

Specifications

Alignment
Fly Camera + Fix Camera (Option)
Spindle & Speed
1 Gantry * 6 Spindle / 30,000 CPH
Accuracy
±40μm@±3σ (Chip) / ±30μm@±3σ(QFP)
Component Range
Fly: 0603 ~ □22mm(0402 ~ □14mm) / Fix: ~□55mm, L75mm Connector
Dimension
L 1,650 x D 1,680 x H 2,090
Enquiry

Panasonic Mounter NPM-TT2 multifunctional production system placement machine

,
The Panasonic Mounter NPM-TT2 is a line configuration capable of achieving both high productivity per unit area and versatility *When directly connecting the NPM-W2, an M-size double-track conveyor belt (optional) is required. The placement head (8-nozzle placement head, 3-nozzle placement head - you can choose the general-purpose 8-nozzle placement head or the 3-nozzle placement head with special-shaped component capability) The specification of the supply part can be selected .change. By reorganizing the tray feeder/exchange trolley, the line configuration can be adapted to the component supply form. Using a multi-functional recognition camera, the recognition and inspection of the height direction of the components can be realized at a high speed, and it can carry out stable and high-speed mounting of special-shaped components) Alternate mounting and independent mounting correspondence ——(can choose the best mounting method corresponding to the production substrate)
Enquiry

Yamaha Premium Modular Σ-G5SⅡ Mounter placement machine

,

Specifications

∑-G5SⅡ
Applicable PCB Single lane L610×W510 mm to L50×W50 mm (Optional: L1,200×W510 to L50×W50 mm)
Dual lane L610×W250 mm to L50×W84mm (dual feed) L610×W415mm (single feed)
Mounting capability High-Speed Multi-Head×2 specifications: 90,000 CPH (single lane/dual lane)
Mounting accuracy (Under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used) High-Speed Multi (HM) Head 0201mm/03015mm: ±25μm/80,000 CPH 0402mm: ±36 μm/85,000 CPH 0603mm: ±40 μm/90,000 CPH
Flexible Multi (FM) Head ±15μm
Applicable components High-Speed Multi (HM) Head 0201mm to L44×W44×H12.7 mm or under
Flexible Multi (FM) Head 1005mm to L72×W72×H25.4 mm or under Connector: 150×26 mm
Number of component types 120 types max. (8 mm wide tape equivalent)
Power supply 3-phase AC200V ±10%, 50/60Hz
Air supply source 0.45 to 0.69 MPa (4.6 to 7 kgf/cm²)
External dimension (excluding projections) L 1,280 x W 2,240 x H 1,450mm
Weight Approx. 1,800 kg
Specifications and appearance are subject to change without prior notice.

Enquiry

Yamaha Premium Modular Σ-F8S Mounter placement machine

,

Specifications

Σ-F8S
Applicable PCB Single lane : L330 x W250 to L50 x W50mm (Option : L381 x W510 to L50 x W50mm) Dual lane : L330 x W250 to L50 x W50mm
Head/Applicable components High-speed head : 0201mm CHIP to 4.3 x 3.4mm, Height 2.0mm or less High-speed multi-purpose head : 03015mm CHIP to 33mm square, Height 12.7mm or less
Mounting capability High-speed head x 4 specs : 150,000CPH (Dual lane) 136,000CPH (Single lane)
Mounting accuracy (Under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used) High-speed head : 0201mm/03015mm : ±25μm (3σ) (140,000CPH) 0402mm/0603mm : ±36μm (3σ) (150,000CPH)
Number of component types Max.80 types (conversion for 8mm tape feeder)
Power supply 3-Phase AC200V ±10% 50/60Hz
Air supply source 0.45 to 0.69MPa (4.6 to 7kgf/cm2)
External dimension L 1,280 x W 2,240 x H 1,450mm (excluding projections)
Weight Approx. 1,940kg
Specifications and appearance are subject to change without prior notice.
Enquiry

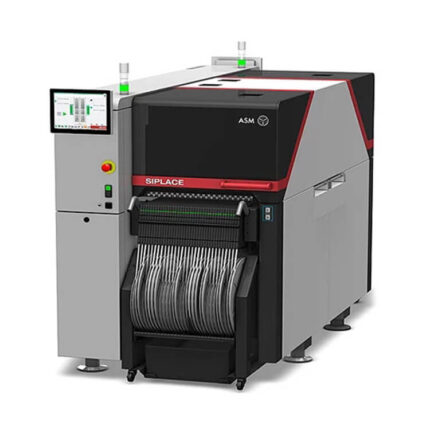

SMT ASM Siemens Mounter Placement machine SIPLACE SX4

,
