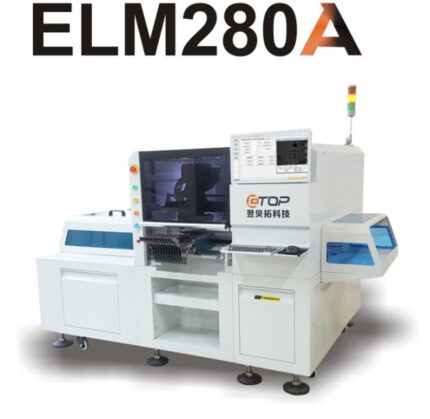

ETOP ELM280A placement machine high speed Pick&Place machine

ETOP ELM280X placement machine high speed Pick&Place machine

【Product Description】



A new generation of general-purpose placement machine



ELM280X is a high-speed general-purpose integrated surface mount equipment developed for applications in electronics, lighting, drives and other fields. Circuit boards, substrates. Equipped with self-developed Chinese operating software to ensure the system is stable and reliable. The placement machine is designed for the mixed placement application of LED, SMD, IC, lens and other products. The mobile platform is designed as a 400mm fixed width product with wider application. ETOP Technology has established an extensive support and service network in China to provide complete surface mount solutions for customers’ development, manufacturing and product innovation.



【Features】



l High speed: increase actual production capacity

l High precision: improve placement quality

l Multifunctional: adapt to more components

Enquiry
Categories: ,
Description

各项规格

 ELM280X技术参数

PCB

 PCB Size

Max

 (L)1500 x (W)400mm
　

Min

 (L)30 x (W)30mm
PCB positioning method 　 Right/lower side substrate fixed block, left/upper movable fixed slider
PCB transport direction 　 Right –> Left (near edge standard)
PCB replacement time-consuming 　 5 seconds (best condition)

Placing

 Placing speed

theoretical conditions

 45,000 CPH
　

average condition

 30,000~36,000 CPH
Placing accuracy     CHIP-LED ±0.05mm
Mounting type 　 LED
CHIP		 Cree, Philips, Osram, Lumen and other high-power LED lamp beads;
0603, 3014, 2835, 5050, SMD, IC 30×30, etc.
identification device 　 Flight photo image recognition technology
Type of head 　 6 nozzle
Feeder Specifications 　 8mm、12mm、16mm、24mm
Feeder Quantity 　 22 x 8mm

Operation

Sysstem

 degree of automation 　 Fully automatic control
main operating system 　 Chinese and English operation interface
Control System 　 industrial computer
Drive System 　 MINAS A6 servo motor
Detection Systems 　 Image detection system
visual system 　 flight vision system

working environment

 Working power 　 Single phase AC200 ~ 415 V
rated power 　 1200W
Air pressure 　 80 psi(0.5 Mpa)
dimension 　 (L)2000 x (W1370 x (H)1475 mm
weight 　 around1000 KG
