FUJI XPF-L mounter placement pick and palce machine
Back to products
FUJI XP143E mounter placement pick and palce machine

FUJI CP743ME mounter placement pick and palce machine

Enquiry
Categories: ,
Description

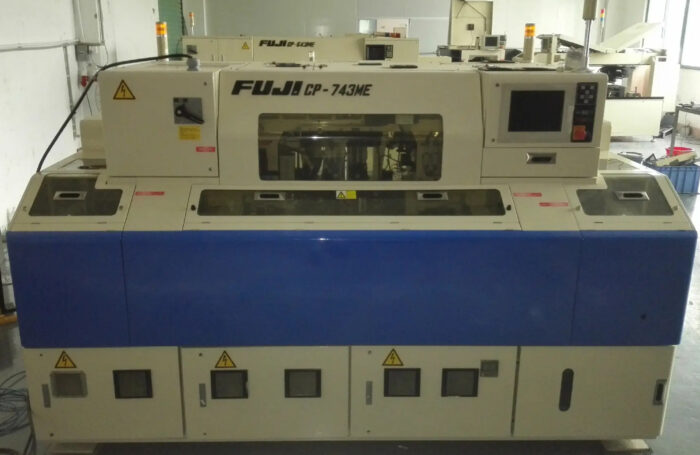

Fuji CP743ME specification:

Chip theoretical speed 0.068 seconds/CHIP
Mounting range 0402-19x19mm
Mounting accuracy ±0.1mm
PCB size L457×W356mm
Equipment size L4700×W1800×H1714mm
Power supply 200-480V, 3-phase 4-wire
Equipment weight 5,900kg

Shipping & Delivery

MAECENAS IACULIS

Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.

ADIPISCING CONVALLIS BULUM

  • Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
  • Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
  • Diam parturient dictumst parturient scelerisque nibh lectus.

Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.

Reviews

There are no reviews yet.

Be the first to review “FUJI CP743ME mounter placement pick and palce machine”

Your email address will not be published. Required fields are marked *

Related products

Yamaha Premium Modular Σ-F8S Mounter placement machine

,

Specifications

Σ-F8S
Applicable PCB Single lane : L330 x W250 to L50 x W50mm (Option : L381 x W510 to L50 x W50mm) Dual lane : L330 x W250 to L50 x W50mm
Head/Applicable components High-speed head : 0201mm CHIP to 4.3 x 3.4mm, Height 2.0mm or less High-speed multi-purpose head : 03015mm CHIP to 33mm square, Height 12.7mm or less
Mounting capability High-speed head x 4 specs : 150,000CPH (Dual lane) 136,000CPH (Single lane)
Mounting accuracy (Under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used) High-speed head : 0201mm/03015mm : ±25μm (3σ) (140,000CPH) 0402mm/0603mm : ±36μm (3σ) (150,000CPH)
Number of component types Max.80 types (conversion for 8mm tape feeder)
Power supply 3-Phase AC200V ±10% 50/60Hz
Air supply source 0.45 to 0.69MPa (4.6 to 7kgf/cm2)
External dimension L 1,280 x W 2,240 x H 1,450mm (excluding projections)
Weight Approx. 1,940kg
Specifications and appearance are subject to change without prior notice.
Enquiry

Yamaha Premium Modular Σ-G5SⅡ Mounter placement machine

,

Specifications

∑-G5SⅡ
Applicable PCB Single lane L610×W510 mm to L50×W50 mm (Optional: L1,200×W510 to L50×W50 mm)
Dual lane L610×W250 mm to L50×W84mm (dual feed) L610×W415mm (single feed)
Mounting capability High-Speed Multi-Head×2 specifications: 90,000 CPH (single lane/dual lane)
Mounting accuracy (Under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used) High-Speed Multi (HM) Head 0201mm/03015mm: ±25μm/80,000 CPH 0402mm: ±36 μm/85,000 CPH 0603mm: ±40 μm/90,000 CPH
Flexible Multi (FM) Head ±15μm
Applicable components High-Speed Multi (HM) Head 0201mm to L44×W44×H12.7 mm or under
Flexible Multi (FM) Head 1005mm to L72×W72×H25.4 mm or under Connector: 150×26 mm
Number of component types 120 types max. (8 mm wide tape equivalent)
Power supply 3-phase AC200V ±10%, 50/60Hz
Air supply source 0.45 to 0.69 MPa (4.6 to 7 kgf/cm²)
External dimension (excluding projections) L 1,280 x W 2,240 x H 1,450mm
Weight Approx. 1,800 kg
Specifications and appearance are subject to change without prior notice.

Enquiry

Yamaha High-efficiency Modular Z:LEX YSM20R Mounter placement machine

,

Specifications

Model YSM20R
Applicable PCB Single lane L810 x W490 to L50 x W50 Dual stage  Note: For X-axis 2-beam option only 1PCB conveyance: L810 x W490 to L50 x W50 2PCB conveyance: L380 x W490 to L50 x W50
Head / Applicable components High-Speed Multi (HM) Head * 0201mm to W55 x L100mm, Height 15mm or less Odd-shaped components (FM: Flexible Multi) head: 03015mm to W55 x L100mm, Height 28mm or less
Mounting capability (under optimum conditions as defined by Yamaha Motor) X axis 2-beam: High-speed multi-purpose (HM: High-speed Multi) head x 2 95,000CPH
Mounting accuracy ±0.035mm (±0.025mm) Cpk≧1.0 (3σ) (under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used)
Number of component Types Fixed plate: Max. 140 types (conversion for 8mm tape feeder) Feeder carriage exchange: Max. 128 types (conversion for 8mm tape feeder) Trays for 30 types (Fixed type: max., when fitted with sATS30) and 10 types (Carriage type: max., when fitted with cATS10)
Power supply 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz
Air supply source 0.45MPa or more, in clean, dry state
External dimension (excluding projections) L 1,374 x W 1,857 x H1,445mm (Main unit only)
Weight Approx. 2,050kg (Main unit only)
Enquiry

SMT Samsung Mounter SM481Plus 481

,

Specifications

Alignment
Fly Camera + Fix Camera (Option)
Spindle & Speed
1 Gantry * 10 Spindle / 40,000 CPH
Accuracy
±40μm@±3σ (Chip) / ±30μm@±3σ(QFP)
Component Range
Fly: 0402 ~ □16mm / Fix: ~□55mm, L75mm Connector
Dimension
L 1,650 x D 1,680 x H 2,090
σ/QFP
Enquiry

Samsung Hanwha High Speed ​​Mounter DECANS2

,

Specifications

Alignment
Fly Camera, Fix Camera
Spindle & Speed
2 Gantry * 10 Spindle / 92,000 CPH
Accuracy
±28 μm @ Cpk ≥ 1.0 (03015 Chip) / ±25 μm @ Cpk ≥ 1.0(IC)
Component Range
Fly: 03015 ~ □12 mm / Fix: ~□42 mm (Standard) / ~□55 mm (MFOV) / ~ L75 mm Connector (MFOV)
Dimension
L 1,430 x D 1,740 x H 1,995
Enquiry

High-efficiency Modular Z:LEX YSM20WR Mounter placement machine

,

Specifications

Model YSM20WR
Applicable PCB Dual lane Note 1 Same type PCBs: L810 x W356 to L50 x W50 Different type PCBs: up to L810 x W662 Note 2 Same type PCB: L810 x W280 to L50 x W500 Different type PCBs: up to L810 x W510
Head / Applicable components High-Speed Multi (HM) Head Note 3 0201mm to W55 x L100mm, Height 15mm or less Odd-shaped components (FM: Flexible Multi) head: 03015mm to W55 x L100mm, Height 28mm or less
Mounting capability (under optimum conditions as defined by Yamaha Motor) X axis 2-beam Note 1: High-speed multi-purpose (HM: High-speed Multi) head x 2 81,000CPH
Mounting accuracy ±0.035mm (±0.025mm) Cpk≧1.0 (3σ) (under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used)
Number of component Types Fixed plate: Max. 140 types (conversion for 8mm tape feeder) Feeder carriage exchange: Max. 128 types (conversion for 8mm tape feeder) Trays for 30 types (Fixed type: max., when fitted with sATS30) and 10 types (Carriage type: max., when fitted with cATS10)
Power supply 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz
Air supply source 0.45MPa or more, in clean, dry state
External dimension (excluding projections) L 1,374 x W 2,110 x H1,445mm (Main unit only)
Weight Approx. 2,500kg (Main unit only)
Note 1 : When using conveyor separation specifications of 787mm between 1 to 4 lanes
Note 2 : When using conveyor separation specifications of 630mm between 1 to 4 lanes
Note 3 : Please contact us for info regarding mounting 0201mm components.
Specifications and appearance are subject to change without prior notice.
Enquiry

Panasonic Mounter NPM-TT2 multifunctional production system placement machine

,
The Panasonic Mounter NPM-TT2 is a line configuration capable of achieving both high productivity per unit area and versatility *When directly connecting the NPM-W2, an M-size double-track conveyor belt (optional) is required. The placement head (8-nozzle placement head, 3-nozzle placement head - you can choose the general-purpose 8-nozzle placement head or the 3-nozzle placement head with special-shaped component capability) The specification of the supply part can be selected .change. By reorganizing the tray feeder/exchange trolley, the line configuration can be adapted to the component supply form. Using a multi-functional recognition camera, the recognition and inspection of the height direction of the components can be realized at a high speed, and it can carry out stable and high-speed mounting of special-shaped components) Alternate mounting and independent mounting correspondence ——(can choose the best mounting method corresponding to the production substrate)
Enquiry

Yamaha Premium High-efficiency Modular YRM20 Mounter placement machine

,

Specifications

Model YRM20
Super high-speed rotary RM head High-speed general-purpose in-line HM head Odd-shaped components in-line FM (flexible-multi) head
Nozzles (per 1 head unit) 18 10 5
Applicable components 0201mm to W12 x L12mm, Height 6.5mm or less 0201mm to W55 x L100mm, Height 15mm or less 03015mm to W55 x L100mm, Height 30mm or less
Mounting capability under optimum conditions (in high production mode) 2-beam : 115,000CPH (under optimum conditions) 1-beam : 57,500CPH (under optimum conditions) 2-beam : 98,000CPH (under optimum conditions) 1-beam : 49,000CPH (under optimum conditions) 2-beam : 35,000CPH (under optimum conditions) 1-beam : 17,500CPH (under optimum conditions)
Mounting accuracy (high-accuracy mode) ±0.025mm Cpk≧1.0 (under optimum conditions) ±0.035mm Cpk≧1.0 (under optimum conditions)
Number of component types Feeder carriage exchange : Max. 128 types = 32 feeders x 4 (conversion for 8mm tape feeder) Fixed plate : Max. 128 types (conversion for 8mm tape feeder), Trays : 60 types (maximum when equipped with eATS30 x 2)
PCB dimensions 1-beam : (Single lane) Standard specifications : L50 x W50mm to L510 x W510mm, option : L50 x W50mm to L810 x W510mm 2-beam : (Dual stage) 1-PCB conveyance : L50 x W50mm to L810 x W510mm, 2-PCB conveyance : L50 x W50mm to L380 x W510mm
Power supply 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz
Air supply source 0.45MPa or more, in clean, dry state
External dimension (excluding projections) L1,374 x W1,948 x H1,445mm
Weight 2-beam : Approx. 2,250kg (Main unit only), 1-beam : Approx. 2,150kg (Main unit only)
Enquiry
