Hitachi GXH-1
High precision and long life Decomposition energy: 0.0048um, speed: 2m/sec maximum acceleration 3G.

Mounting accuracy: +/-0.05mm, special correction: +/-0.035mm

12 suction nozzles, 12 parts can be recognized at one time with the shuttle flashing, the camera recognition time is 2m/s, and the large field of view is 0201~44*44mm. Parts can be recognized at one time, the maximum can be 55*55mm, and the connection can be up to 100*26*25.4mm

Flash recognition while walking, high brightness lighting, recognition correction, shooting time: 5u/sec

Adopt double hanging mechanism, one feeder can hang two different materials, high-speed and high-precision feeding, driven by servo motor, speed: 0.08 seconds/piece (when the feeding pitch is 2, 4mm)

Accuracy: +/-0.05mm (8mm*2mmpitch 0201)

Simplification of feeder models, paper and tape supply, variable feeding pitch

There are 12 suction nozzles per head, and there is an automatic nozzle replacement system. The system automatically replaces the nozzles when the actual production needs each time the line is changed, making the line change faster, (the nozzles are not replaced during production)

Special-shaped head 3 suction nozzle is to replace the suction nozzle according to the size of the part during production

There are double tracks in the device, and two boards can be placed in the same table (the width of the circuit board is below 215mm)

The parts database is automatically created in the system. It only takes 1-5 minutes to create a new part data.

Wide application High-speed placement head 0402~ 44mm
Non-stop replacement of placement head modules for high-speed/multi-function placement heads
Non-stop feeding rack module for intelligent tape-and-reel feeding rack/multi-layer tray feeding rack
high throughput
Actual production of high-performance and stable direct-drive placement head
Linear motor drive 4-axis 4-head structure; non-stop one-time recognition (maximum 12 parts)

MAECENAS IACULIS

Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.

ADIPISCING CONVALLIS BULUM

Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
Diam parturient dictumst parturient scelerisque nibh lectus.

Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.

Click to enlarge

Back to products

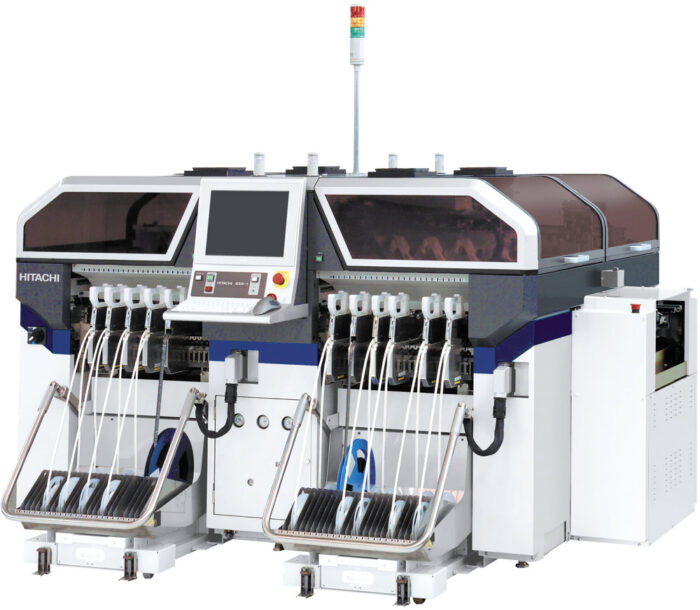

HITACHI GXH-1S – DIRECT DRIVE MODULAR MOUNTER PICK AND PLACE MACHINE

Enquiry

Categories: HITACHI, SMT placement machine

Description
Shipping & Delivery

Description

Shipping & Delivery

Reviews

There are no reviews yet.

Be the first to review “HITACHI GXH-1S – DIRECT DRIVE MODULAR MOUNTER PICK AND PLACE MACHINE”
