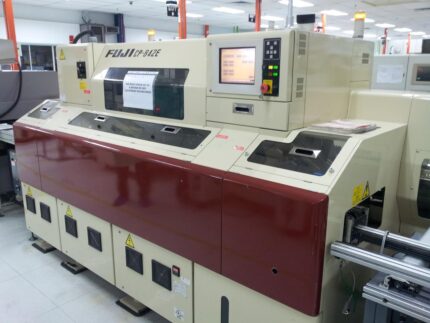

FUJI CP842E mounter placement pick and palce machine
Back to products
JUKI Fast Smart Modular Mounter RS-1XL placement pick and palce machine

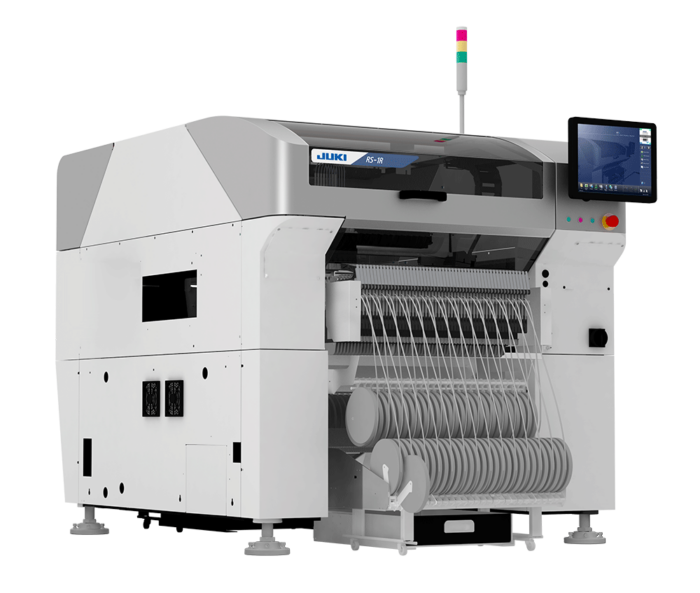

JUKI Fast Smart Modular Mounter RS-1R placement pick and palce machine

Features

  • Class leading speed, up to 47,000 cph
  • Newly developed “Takumi Head” with changing recognition sensor height
  • Optimum line balance and highest throughput
  • Wide component range from 0201 (metric) to large connectors and ICs
  • Optimal for LED placement
Enquiry
Categories: ,
Description

Specification

Fast Smart Modular Mounter
Model RS-1R
Conveyor specification standard 150mm conveyor extensions,
upstream and downstream		 250mm conveyor extensions,
upstream and downstream
Board size minimum 50×50㎜
maximum 1 buffer 650×370 ㎜ （Single clamping）
950×370 ㎜ （double clamping） 1,100×370 ㎜ （double clamping） 1,200×370 ㎜ （double clamping）
3 buffers 360×370㎜ 500×370㎜ 600×370㎜
Component height 25㎜
Component size 0201*1 ～□74 ㎜ /150×50 ㎜
Placement speed Optimum 47,000CPH
IPC9850 31,000CPH
Placement accuracy ±35μｍ（Cpk≧1）
Vision recognition ±30μｍ
Feeder inputs max.112*2

*1 For metric 0201 compliance please contact us.
*2 Using RF(RF08AS) feeders
