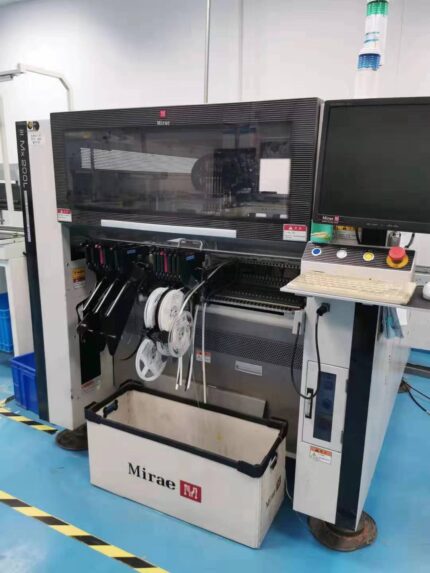

MIRAE MX200L PICK AND PLACE MACHINE MOUNTER
Back to products
Universal Instruments Genesis GC-120 Pick & Place Machine

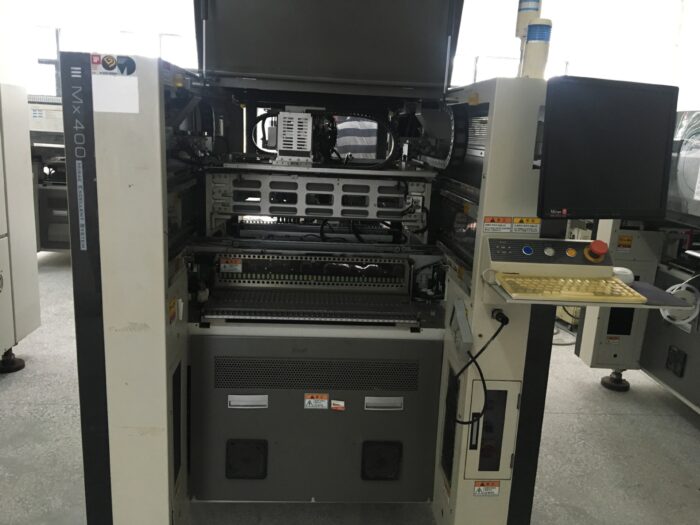

MIRAE MX400 PICK AND PLACE MACHINE MOUNTER

Enquiry
Categories: ,
Description

Shipping & Delivery

MAECENAS IACULIS

Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.

ADIPISCING CONVALLIS BULUM

  • Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
  • Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
  • Diam parturient dictumst parturient scelerisque nibh lectus.

Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.

Reviews

There are no reviews yet.

Be the first to review “MIRAE MX400 PICK AND PLACE MACHINE MOUNTER”

Your email address will not be published. Required fields are marked *

Related products

Yamaha Premium Modular Σ-G5SⅡ Mounter placement machine

,

Specifications

∑-G5SⅡ
Applicable PCB Single lane L610×W510 mm to L50×W50 mm (Optional: L1,200×W510 to L50×W50 mm)
Dual lane L610×W250 mm to L50×W84mm (dual feed) L610×W415mm (single feed)
Mounting capability High-Speed Multi-Head×2 specifications: 90,000 CPH (single lane/dual lane)
Mounting accuracy (Under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used) High-Speed Multi (HM) Head 0201mm/03015mm: ±25μm/80,000 CPH 0402mm: ±36 μm/85,000 CPH 0603mm: ±40 μm/90,000 CPH
Flexible Multi (FM) Head ±15μm
Applicable components High-Speed Multi (HM) Head 0201mm to L44×W44×H12.7 mm or under
Flexible Multi (FM) Head 1005mm to L72×W72×H25.4 mm or under Connector: 150×26 mm
Number of component types 120 types max. (8 mm wide tape equivalent)
Power supply 3-phase AC200V ±10%, 50/60Hz
Air supply source 0.45 to 0.69 MPa (4.6 to 7 kgf/cm²)
External dimension (excluding projections) L 1,280 x W 2,240 x H 1,450mm
Weight Approx. 1,800 kg
Specifications and appearance are subject to change without prior notice.

Enquiry

Yamaha Wide-Range Compact Modular YC8 Mounter placement machine

,

Specifications

YC8
Applicable PCB L50 x W50mm to L330 x W360mm *1
Mounting accuracy When using Yamaha's standard components Absolute accuracy (μ+3σ):+/-0.05mm /QFP Repeatability(3σ) +/-0.03mm /QFP
Mounting capability Indication 2.5sec/component (Cycle time from a pickup to mounting with recognition)
Applicable components 4 x 4mm to 100 x 100mm *2 (Some components larger than 45 x 45mm ane conditional) Maximum components heights 45mm Maximum payload 1kg
Component supply configuration: Number of component types Tape reel : MAX. 28 types (8mm width) Tray : MAX. 15 trays Stick
Power supply 3-Phase AC 200/208/220/240/380/400/416V　+/-10%　50/60Hz
Air supply source 0.45MPa or more, in clean, dry states
External dimension (excluding projections) L 880 x W1,440 x H1,445mm (Main unit only) L 880 x W1,755 x H1,500mm (When ATS15 is installed)
Weight Approx. 1,000kg (Main unit only) ATS15 : Approx. 120kg
*1
Please consult us separately for maximum board sizes.
*2
Consult us separately regarding component sizes outside the specifications.
Specifications and appearance are subject to change without prior notice.
Enquiry

SMT ASM Siemens Mounter HS60/SIPLACE High Speed Mounter

,
Number of gantry: 4 Theoretical placement rate: 60000cph Component range: 0.6mmx0.3mm (0201) to 18.7mmx18.7mm Mounting accuracy (4sigma): 80/75um The size of the PCB that can be attached: Single track: 50mmx50mm to 368mmx460mm
Enquiry

SMT placement machine Samsung placement machine SM471Plus

,
High-performance chip shooter with a new fly camera · World's highest speed of 78,000CPH among chip shooters of the same class · With two gantry dual-lane construction, supports various production modes

Specifications

Alignment
Fly Camera
Spindle & Speed
2 Gantry * 10 Spindle / 78,000 CPH
Accuracy
±40μm@±3σ (Chip) / ±50μm@±3σ (QFP)
Component Range
0402 ~ □14mm
Dimension
L 1,650 x D 1,690 x H 2,045
Enquiry

Samsung Hanwha High Speed ​​Mounter DECANS2

,

Specifications

Alignment
Fly Camera, Fix Camera
Spindle & Speed
2 Gantry * 10 Spindle / 92,000 CPH
Accuracy
±28 μm @ Cpk ≥ 1.0 (03015 Chip) / ±25 μm @ Cpk ≥ 1.0(IC)
Component Range
Fly: 03015 ~ □12 mm / Fix: ~□42 mm (Standard) / ~□55 mm (MFOV) / ~ L75 mm Connector (MFOV)
Dimension
L 1,430 x D 1,740 x H 1,995
Enquiry

Panasonic NPM-W2 Multifunctional Mounter placement machine

,
Product Features of Panasonic NPM-W2 Multi-Function Mounter 1. Install & inspect a complete system to achieve efficient and high-quality production To match the actual installation requirements, you can choose high-yield or high-precision mode 2. Can correspond to larger substrates and large components Correspondingly, on a large substrate of 750×550 mm, the component range is also expanded to L150×W25×T30mm 3. Double-track installation (select specifications) to achieve high productivity per unit area According to the production substrate, you can choose independent mounting, alternate mounting, mixed mounting and other mounting methods
Enquiry

Yamaha 3D Hybrid Modular S10/S20 Mounter placement machine

,

Specifications

S10 S20
Board size(with buffer unused) Min. L50 x W30mm to Max. L1,330 x W510mm (Standard L955) Min. L50 x W30mm to Max. L1,830 x W510mm (Standard L1,455)
Board size(with input or output buffer used) Min. L50 x W30mm to Max. L420 x W510mm -
Board size(with input and output buffers used) Min. L50 x W30mm to Max. L330 x W510mm Min. L50 x W30mm to Max. L540 x W510mm
Board thickness 0.4 - 4.8mm 0.4 - 4.8mm
Board flow direction Left to right (Std) Left to right (Std)
Board transfer speed Max 900mm/sec Max 900mm/sec
Placement speed (12 heads + 2 theta) Opt. Cond. 0.08sec/CHIP (45,000CPH) 0.08sec/CHIP (45,000CPH)
Placement accuracy A (μ+3σ) CHIP +/-0.040mm CHIP +/-0.040mm
Placement accuracy B (μ+3σ) IC +/-0.025mm IC +/-0.025mm
Placement angle +/-180 degrees +/-180 degrees
Z axis control / Theta axis control AC servo motor AC servo motor
Component height Max 30mm*1 (Pre-placed components: max 25mm) Max 30mm*1 (Pre-placed components: max 25mm)
Applicable components 0201mm – 120x90mm, BGA, CSP, connector, etc. (Standard 01005 -) 0201mm – 120x90mm, BGA, CSP, connector, etc. (Standard 01005 -)
Component package 8 - 56mm tape (F1/F2 Feeders), 8 - 88mm tape (F3 Electric Feeders), stick, tray 8 - 56mm tape (F1/F2 Feeders), 8 - 88mm tape (F3 Electric Feeders), stick, tray
Drawback check Vacuum check and vision check Vacuum check and vision check
Screen language English, Chinese, Korean, Japanese English, Chinese, Korean, Japanese
Board positioning Board grip unit, front reference, auto conveyor width adjustment Board grip unit, front reference, auto conveyor width adjustment
Component types Max 90 types (8mm tape), 45 lanes x 2 Max 180 types (8mm tape), 45 lanes x 4
Transfer height 900 +/- 20mm 900 +/- 20mm
Machine dimensions, weight L1250xD1750xH1420mm, Approx. 1,200kg L1750xD1750xH1420mm, Approx. 1,500kg
*1 :
Board thickness + Component height = Max 30mm
Specifications and appearance are subject to change without prior notice.
Enquiry
