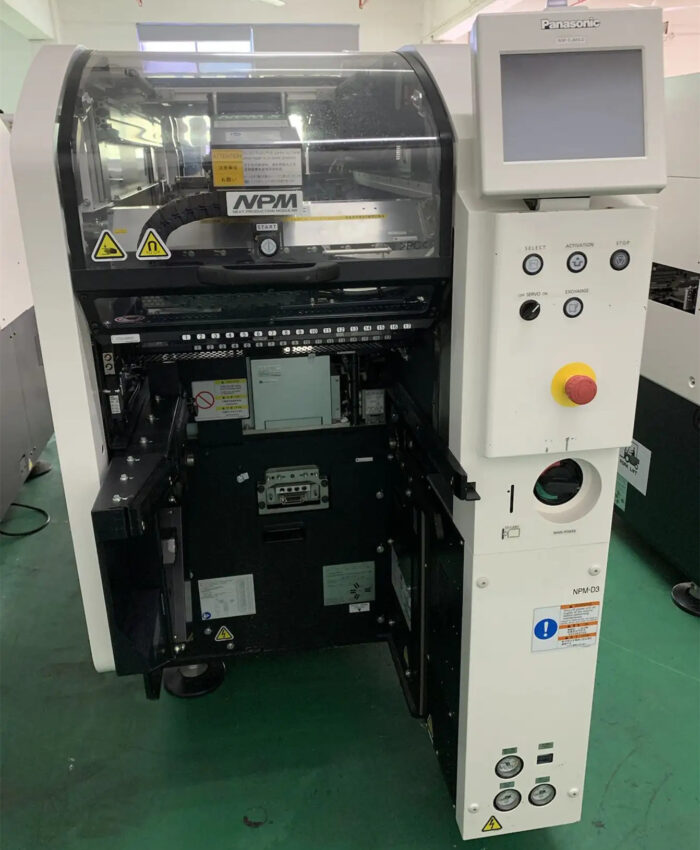

Panasonic NPM-D3 placement machine Panasonic high-speed module placement machine

1. Panasonic NPM-D3 placement machine, Panasonic placement machine NPM-D3, Panasonic high-speed module placement machine parameters:

1. Model name: NPM-D3 (Panasonic module placement machine, Panasonic high-speed placement machine, Panasonic modular placement machine)

2. Substrate size (mm)

Double-track type: L50×W50～L510×W300

Monorail type: L50×W50～L510×W590

3. Substrate replacement time

Two-track type: 0s When the cycle time is less than 3.6s, it cannot be 0s.

Single track type: 3.6s when selecting a short conveyor belt

4. Power supply: three-phase AC200, 220, 380, 400, 420, 480V2.7kVA

5. Air pressure source*2: 0.5MPa, 100L/min (A.N.R.)

6. Equipment size (mm)*2: W832×D2652*3×H1444*4

7. Weight: 1680kg (only for the main body: it varies with the composition of the optional parts.)

Two, Panasonic NPM-D3 placement machine, Panasonic placement machine NPM-D3, Panasonic high-speed module placement machine Mounting head type:

1, (1) 16 nozzle head placement head: (equipped with 2 cantilever) ON high production mode

Mounting speed: 84000cph (0.043s/chip)

IPC9850: 63300cph*5

Mounting accuracy (Cpk≧1): ±40μm/chip

Component size (mm): 0402 chip*7～L6×W6×T3

Component supply:

Tape width: 8/12/16/24/32/44/56mm

8mm braiding: Max, 68 companies (8mm thin single type material rack and double type braiding material rack, small reel)

(2) 16 nozzle head placement head: (equipped with 2 cantilever) OFF high production mode

Mounting *fastest speed: 76000cph (0.047s/chip)

IPC9850: 57800cph*5

Mounting accuracy (Cpk≧1): ±30μm/chip (±25μm/chip*6)

Component size (mm): 03015*7*8/0402 chip*7～L6×W6×T3

Component supply:

Tape width: 8/12/16/24/32/44/56mm

8mm braiding: Max, 68 companies (8mm thin single type material rack and double type braiding material rack, small reel)

2, 12 nozzle head placement head: (equipped with 2 cantilevers)

Fast mounting speed: 69000cph (0.052s/chip)

IPC9850: 50700cph*5

Mounting accuracy (Cpk≧1): ±30μm/chip

Component size (mm): 0402 chip*7～L12×W12×T6.5

Component supply:

Tape width: 8/12/16/24/32/44/56mm

8mm braiding: Max, 68 companies (8mm thin single type material rack and double type braiding material rack, small reel)

3, 8 nozzle head placement head: (equipped with 2 cantilevers)

Mounting *fastest speed: 43000cph (0.084s/chip)

Mounting accuracy (Cpk≧1): ±30μm/QFP 12mm~32mm, ±50μm/QFP 12mm or less

Component size (mm): 0603 chip ~ L100×W90×T28

Component supply:

Tape width: 8/12/16/24/32/44/56mm

8mm braiding: Max, 68 companies (8mm thin single type material rack and double type braiding material rack, small reel)

Rod shape: Max, 8 series, tray: Max. 20 pieces (1 tray feeder)

4. 2 nozzle head placement head: (equipped with 2 cantilevers)

Mounting *fastest speed: 11000cph (0.327s/chip)

IPC9850: 8500cph (0.423s/QFP)

Mounting accuracy (Cpk≧1): ±40μm/chip

Component size (mm): 0402 chip*7～L6×W6×T3

Component supply:

Braid width: 8~56/72/88/104mm

8mm braiding: Max, 68 companies (8mm thin single type material rack and double type braiding material rack, small reel)

Rod shape: Max, 8 series, tray: Max. 20 pieces (1 tray feeder)

Three, Panasonic Mounter NPM-D3 product features:

1. Achieve a high productivity per unit area in the integrated assembly production line

A coherent system of assembly & inspection realizes high-efficiency and high-quality production

2. Customers can freely choose the actual installation production line

The position of each working head can be freely set through the plug-and-play function

3. Realize the overall management of production line? production workshop? factory through system software

Support planned production through production line operation monitoring
