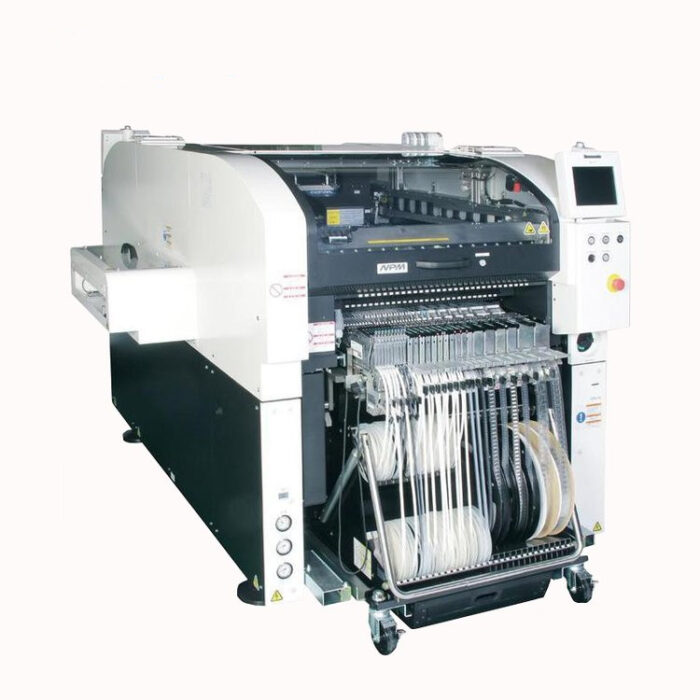

Panasonic Mounter NPM-W2 Product Parameters
Model name: Panasonic Mounter NPM-W2
Substrate size of Panasonic NPM-W2 multi-function placement machine
Monorail*1
Overall installation of Panasonic NPM-W2 multi-function placement machine: L50mm×W50mm~L750mm×W550mm×
L50mm×W50mm~L350mm×W550mm×W550mm×
Double track*1
Monorail conveying: L50mm×W50mm~L750mm×W510mm
Two-wire transmission: L50mm×W50mm~L750mm×W260mm
Electricity: three-phase AC200,220,380,400,420,480 V2.8 kVA
Air pressure source*2: 0.5 MPa, 200 liters/min (A. N. R)
Device size*2: W1280mm*3×D2332mm*4×H1444mm*5
Weight: 2470 kg (main body only: varies depending on the composition of selected parts).
Mounting head: 16 nozzle placement head (with 2 placement heads) ON high production mode
Mappet* Fastest: 77000 cph (0.047 s/chip)
IPC9850 (1608): 59200 cph*6
Assembly accuracy (Cpk≥1): ±40μm/chip
Part size (mm): 0402 pieces*8~L6×W6×T3
Panasonic NPM-W2 multifunctional placement machine component supply taping bandwidth: 8//56 mm
Max, 120 companies (8 mm tape, double rack (small reel))
Placement head: 16 nozzle placement heads (with 2 placement heads) OFF high production mode
Mapping* fast speed: 70000 cph (0.051 s/chip)
IPC9850 (1608): 56000 cph*6
Assembly accuracy (Cpk≥1): ±30μm/chip (±25μm/chip*7)
Panasonic NPM-W2 multi-function placement machine Part size (mm): 03015*8*9,0402 pieces*8~L6×W6×T3
Mounting head: 12-nozzle mounting head (with 2 mounting heads) ON high production mode
Multiple* fast speed: 64500 cph (0.056 s/chip)
IPC9850 (1608): 49500 cph*6
Part size (mm): 0402pcs*8~L12×W12×T6.5
Panasonic NPM-W2 multi-function placement machine placement head: 12 nozzle placement heads (with 2 placement heads) OFF high production mode
Mappet* Fast Speed: 62500 cph (0.058 s/s)
IPC9850 (1608): 48000 cph*6
Assembly accuracy (Cpk≥1): ±30μm/chip
Mounting head: 8 suction nozzle placement (install 2 fashions)
meta* fast speed: 40000 cph (0.090 s/chip)
Assembly accuracy (Cpk≥1): ±30μm/chip, ±30μm/QFP 12 mm~32 mm/±50μm/QFP or less
Panasonic NPM-W2 multi-function placement machine Part size (mm): 0402 pieces*8~L32×W32×T12
Component supply tape width: 8~56mm
Panasonic NPM-W2 multi-function placement machine front, rear, and rear change specifications: Max.120 connections (bandwidth, material rack left conditions)
Single disc specification: Max.86 companies (loading tape width, material racks are arranged according to the conditions on the left)
Double disc specification: Max 60 connecting plate (under the conditions mentioned on the left, the width of the braid, the material shelf)
Rod type: front and rear exchange trolley Specifications: 14 companies
Panasonic NPM-W2 multi-function placement machine single tray specification: Max 10
Double disc specification: Max 7
Pallet: single tray Specifications: Max 20
Panasonic NPM-W2 multi-function placement machine double disc specification: Max 40
Mounting head: 3 suction nozzle placement (can hold 2 pieces)
meta*fast speed: 11000 cph (0.33 s/QFP)
Assembly accuracy (Cpk≤1): ±30μ m/QFP
Part size (mm): 0603 pieces~L150×W25 (diagonal 152)×T30
Component supply tape width: 8~56/72/88/104mm
Panasonic NPM-W2 Multifunctional Mounter placement machine
Product Features of Panasonic NPM-W2 Multi-Function Mounter
1. Install & inspect a complete system to achieve efficient and high-quality production
To match the actual installation requirements, you can choose high-yield or high-precision mode
2. Can correspond to larger substrates and large components
Correspondingly, on a large substrate of 750×550 mm, the component range is also expanded to L150×W25×T30mm
3. Double-track installation (select specifications) to achieve high productivity per unit area
According to the production substrate, you can choose independent mounting, alternate mounting, mixed mounting and other mounting methods
