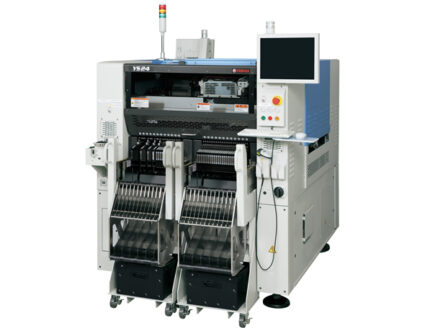

Yamaha placement machine YS24 mounter

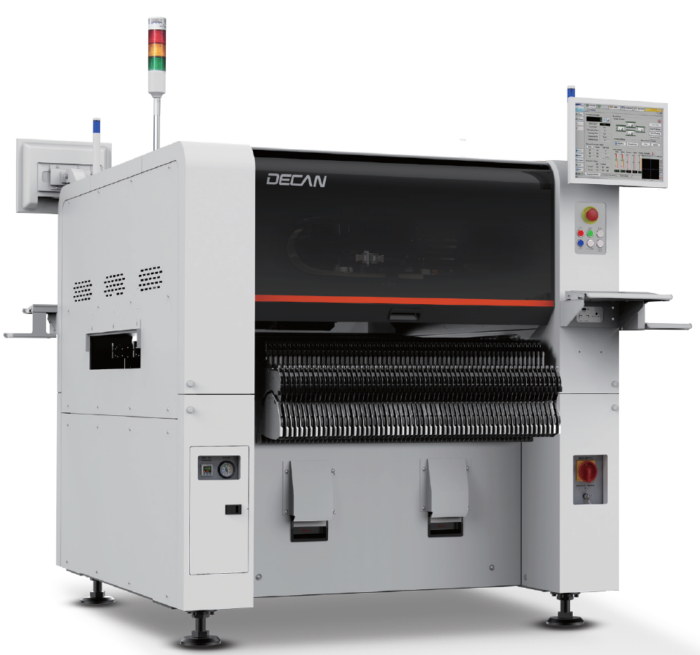

Samsung Hanwha DECAN S1 mounter placement pick and place machine

Specifications

Alignment
Fly Camera, Fix Camera
Spindle & Speed
1 Gantry * 10 Spindle / 47,000 CPH
Accuracy
±28μm @ Cpk≥ 1.0 (Chip) / ±30μm @ Cpk≥ 1.0 (IC)
Component Range
Fly: 03015 ~ □16 mm / Fix: ~□42 mm (Standard) / ~□55 mm (MFOV) / ~ L75 mm Connector (MFOV)
Dimension
L 1,430 x D 1,740 x H 1,485
Enquiry
Categories: ,
Description

Features

  • 이미지

    Flexible Production

    Highest Applicability of Medium Speed Chip Mounters to PCBs
    510 x 510mm (standard) / 1500 x 460mm (optional) – Possible to produce PCBs of up to 1,500mm(L) x 460mm(W) in size

  • 이미지

    High Reliability

    Places Microchips Stably
    Performs automatic calibration during production to keep placement accuracy constant Maintains pickup and placement quality with the Nozzle Maintenance Unit

  • 이미지

    Productivity

    Highest Performance among Chip Mounters of the Same Class
    Increases the component recognition range using a high-pixel camera Increases simultaneous pickup rate and odd-shape component placement speed

  • 이미지

    Easy Operation

    Increases Operational Convenience
    Teaches a large odd-shape component easily and reduces teaching time Equipped with the function to unify the lighting level of chip components and maintains the pickup coordinates of common feeders
