Home Shop SMT placement machine Samsung Hanwha Samsung Mounter SM320 Pick&Place machine
Universal Instruments Genesis mounter GX-37D Pick & Place Machine
Back to products

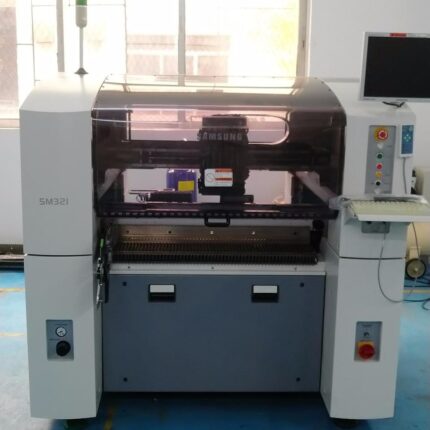

Samsung Mounter SM321 Pick&Place machine

Samsung Mounter SM320 Pick&Place machine

Enquiry
Categories: Samsung Hanwha, SMT placement machine
Share:
  • Description
  • Shipping & Delivery
Description

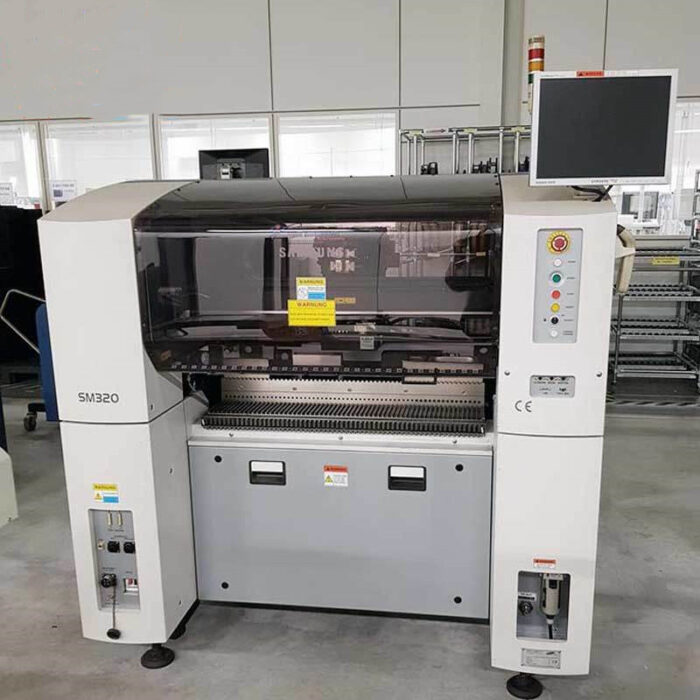

Samsung Mounter SM320|Samsung Medium Speed Mounter|Multifunctional Mounter
Model: Samsung Mounter SM320
Component identification method: FLYING VISION +STAGE VISION
Mounting Efficiency of Samsung Mounter SM320: Flying Camera Recognition System
Mounting speed: CHIP 1608 18500 CPH (IPC9850)
SOP 15000 CPH (IPC9850)
QFP 5500 CPH (IPC9850)
Fixed camera vision system: 1.4 SEC/QFP208(TRAY SUPPLY STANDARD)
Mountable range of components: 1005~□22mmIC (Option: 0603~□12mmIC/0402~□7mmIC)
Component height: H12mm (Flying camera standard)
H15mm(Flying camera standard)
PCB board size: minimum size 50(L)*40(W)
*Large size 460(L)*400(W)/Option: 510*460, 640*510
PCB board thickness: 0.38mm-4.2mm
Installed feeder quantity: 120ea/112ea(docking cart)
Air pressure and power consumption
Power supply: AC220/220/240V (50/60HZ, 3 PHASE) (Option: 340/380/415V)
Air pressure: 5kg/㎡, 260 NI/MIN
Machine weight: 1800KG
Samsung Mounter SM320 machine size: 1650L*1680D*1530H

Shipping & Delivery
wd-ship-1
wd-ship-2

MAECENAS IACULIS

Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.

ADIPISCING CONVALLIS BULUM

  • Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
  • Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
  • Diam parturient dictumst parturient scelerisque nibh lectus.

Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.

Reviews

There are no reviews yet.

Be the first to review “Samsung Mounter SM320 Pick&Place machine” Cancel reply

Your email address will not be published. Required fields are marked *

Related products

Super High Efficiency Dual Lane Modular YRM20DL Mounter placement machine

SMT placement machine, Yamaha

Specifications

Model YRM20
Super high-speed rotary RM head High-speed general-purpose in-line HM head Odd-shaped components in-line FM (flexible-multi) head
Nozzles (per 1 head unit) 18 10 5
Applicable components 0201mm to W12 x L12mm, Height 6.5mm or less 0201mm to W55 x L100mm, Height 15mm or less 03015mm to W55 x L100mm, Height 30mm or less
Mounting capability (under optimum conditions) 120,000CPH Note 1 100,000CPH Note 1 35,000CPH
Mounting accuracy (under optimum conditions) ±0.015mm Cpk≧1.0 Note 2 ±0.035mm Cpk≧1.0
Number of component types Feeder carriage exchange : Max. 128 types = 32 feeders x 4 (conversion for 8mm tape feeder) Fixed plate : Max. 128 types (conversion for 8mm tape feeder), Trays : 60 types (maximum when equipped with eATS30 x 2)
PCB dimensions Single use : L50 x W50mm to L810 x W610mm Dual use : L50 x W50mm to L810 x W330mm
Power supply 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz
Air supply source 0.45MPa or more, in clean, dry state
External dimension (excluding projections) L1,374 x W2,102 x H1,445mm
Weight Approx. 2,550kg (Main unit only)
Enquiry

SMT ASM Siemens Mounter HS60/SIPLACE High Speed Mounter

SMT placement machine, ASM SIEMENS
Number of gantry: 4 Theoretical placement rate: 60000cph Component range: 0.6mmx0.3mm (0201) to 18.7mmx18.7mm Mounting accuracy (4sigma): 80/75um The size of the PCB that can be attached: Single track: 50mmx50mm to 368mmx460mm
Enquiry

Yamaha High-efficiency Modular Z:LEX YSM20R Mounter placement machine

SMT placement machine, Yamaha

Specifications

Model YSM20R
Applicable PCB Single lane L810 x W490 to L50 x W50 Dual stage  Note: For X-axis 2-beam option only 1PCB conveyance: L810 x W490 to L50 x W50 2PCB conveyance: L380 x W490 to L50 x W50
Head / Applicable components High-Speed Multi (HM) Head * 0201mm to W55 x L100mm, Height 15mm or less Odd-shaped components (FM: Flexible Multi) head: 03015mm to W55 x L100mm, Height 28mm or less
Mounting capability (under optimum conditions as defined by Yamaha Motor) X axis 2-beam: High-speed multi-purpose (HM: High-speed Multi) head x 2 95,000CPH
Mounting accuracy ±0.035mm (±0.025mm) Cpk≧1.0 (3σ) (under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used)
Number of component Types Fixed plate: Max. 140 types (conversion for 8mm tape feeder) Feeder carriage exchange: Max. 128 types (conversion for 8mm tape feeder) Trays for 30 types (Fixed type: max., when fitted with sATS30) and 10 types (Carriage type: max., when fitted with cATS10)
Power supply 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz
Air supply source 0.45MPa or more, in clean, dry state
External dimension (excluding projections) L 1,374 x W 1,857 x H1,445mm (Main unit only)
Weight Approx. 2,050kg (Main unit only)
Enquiry

Panasonic CM202 placement machine Mounter

SMT placement machine, Panasonic
Main parameters of CM202 placement machine: 2004 equipment PCB size: 460mm×360mm Component range that can be attached: 0201 to 24mmQFPS Material station: 104 Theoretical placement speed: 0.088s/chip 40909 pieces/hour Mounting accuracy: ±0.05mm Dimensions and Weight: 2,350(L) X 1,950(D) X 1,430(H)mm&2,800kg Power supply and air source: 3P/200V±10V/3KVa
Enquiry

Yamaha Premium High-efficiency Modular YRM20 Mounter placement machine

SMT placement machine, Yamaha

Specifications

Model YRM20
Super high-speed rotary RM head High-speed general-purpose in-line HM head Odd-shaped components in-line FM (flexible-multi) head
Nozzles (per 1 head unit) 18 10 5
Applicable components 0201mm to W12 x L12mm, Height 6.5mm or less 0201mm to W55 x L100mm, Height 15mm or less 03015mm to W55 x L100mm, Height 30mm or less
Mounting capability under optimum conditions (in high production mode) 2-beam : 115,000CPH (under optimum conditions) 1-beam : 57,500CPH (under optimum conditions) 2-beam : 98,000CPH (under optimum conditions) 1-beam : 49,000CPH (under optimum conditions) 2-beam : 35,000CPH (under optimum conditions) 1-beam : 17,500CPH (under optimum conditions)
Mounting accuracy (high-accuracy mode) ±0.025mm Cpk≧1.0 (under optimum conditions) ±0.035mm Cpk≧1.0 (under optimum conditions)
Number of component types Feeder carriage exchange : Max. 128 types = 32 feeders x 4 (conversion for 8mm tape feeder) Fixed plate : Max. 128 types (conversion for 8mm tape feeder), Trays : 60 types (maximum when equipped with eATS30 x 2)
PCB dimensions 1-beam : (Single lane) Standard specifications : L50 x W50mm to L510 x W510mm, option : L50 x W50mm to L810 x W510mm 2-beam : (Dual stage) 1-PCB conveyance : L50 x W50mm to L810 x W510mm, 2-PCB conveyance : L50 x W50mm to L380 x W510mm
Power supply 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz
Air supply source 0.45MPa or more, in clean, dry state
External dimension (excluding projections) L1,374 x W1,948 x H1,445mm
Weight 2-beam : Approx. 2,250kg (Main unit only), 1-beam : Approx. 2,150kg (Main unit only)
Enquiry

SMT placement machine ASM Siemens placement machine TX2i/TX2/TX1

SMT placement machine, ASM SIEMENS
Introduction to ASM Siemens Mounter TX2i: ASM Siemens Mounter TX2i: Provide high performance and high precision in a very small footprint. The ASM Siemens Mounter TX2i mounter module sets a new benchmark for mass production. No other placement solution can achieve 25 µm @ 3 sigma accuracy at speeds up to 96,000 cph in such a small footprint (only 1m x 2.3m).
Enquiry

SMT Samsung Mounter SM482 Plus 482

SMT placement machine, Samsung Hanwha

Specifications

Alignment
Fly Camera + Fix Camera (Option)
Spindle & Speed
1 Gantry * 6 Spindle / 30,000 CPH
Accuracy
±40μm@±3σ (Chip) / ±30μm@±3σ(QFP)
Component Range
Fly: 0603 ~ □22mm(0402 ~ □14mm) / Fix: ~□55mm, L75mm Connector
Dimension
L 1,650 x D 1,680 x H 2,090
Enquiry

SMT placement machine Siemens ASM SIPLACE HS50 high-speed placement machine

SMT placement machine, ASM SIEMENS
1. The size of the parts that can be attached: from 0201 (0.25mmx0.5mm) to 18.7mmx18.7mm. 2. The types of parts that can be loaded at one time: 144 types (8mm parts). 3. SMT speed: 50,000 parts/hour. 4. Chip accuracy: ±0.075 (at 4sigma). 5. Material station: 144
