| Equipment model | SMT-Unloader-250 | SMT-Unloade-330 | SMT-Unloade-390 | SMT-Unloade-460 |
| Controller | PLC | PLC | PLC | PLC |
| Overall dimensions | 1700x780x1200mm | 1900x860x1200mm | 2200x920x1200mm | 2200x1120x1200mm |
| Frame up time | about 3s | about 3s | about 3s | about 3s |
| Material box replacement time | about 5s | about 5s | about 5s | about 5s |
| Power supply and load | 220v/0.3kw | 220v/0.3kw | 220v/0.3kw | 220v/0.3kw |
| Air pressure and flow rate | 4-6bar，≤10L/min | 4-6bar，≤10L/min | 4-6bar，≤10L/min | 4-6bar，≤10L/min |
| Orbit | 900±20mm | 900±20mm | 900±20mm | 900±20mm |
| Transport Direction | Left⇆Right | Left⇆Right | Left⇆Right | Left⇆Right |
| Allowable plate thickness | 0.4-5mm | 0.4-5mm | 0.4-5mm | 0.4-5mm |
| Allowable part height | ≤2.5cm | ≤2.5cm | ≤2.5cm | ≤2.5cm |
| Step selection | 1-4 (10mm steps) | 1-4 (10mm steps) | 1-4 (10mm steps) | 1-4 (10mm steps) |
| Sensor | Photoelectric induction | Photoelectric induction | Photoelectric induction | Photoelectric induction |
| Running the motor | stepping motor | stepping motor | stepping motor | stepping motor |
| Material frame size | 355x320x563mm | 460x400x563mm | 535x460x570mm | 535x530x570mm |
| Fault detect | I/O signal detection | I/O signal detection | I/O signal detection | I/O signal detection |
| Allowable board size | （50×50）x（350×250）mm | （50×50）x（455×330）mm | （50×50）x（530×390）mm | （50×50）x（530×460）mm |
| Equipment weight | 150kg | 175kg | 215kg | 240kg |

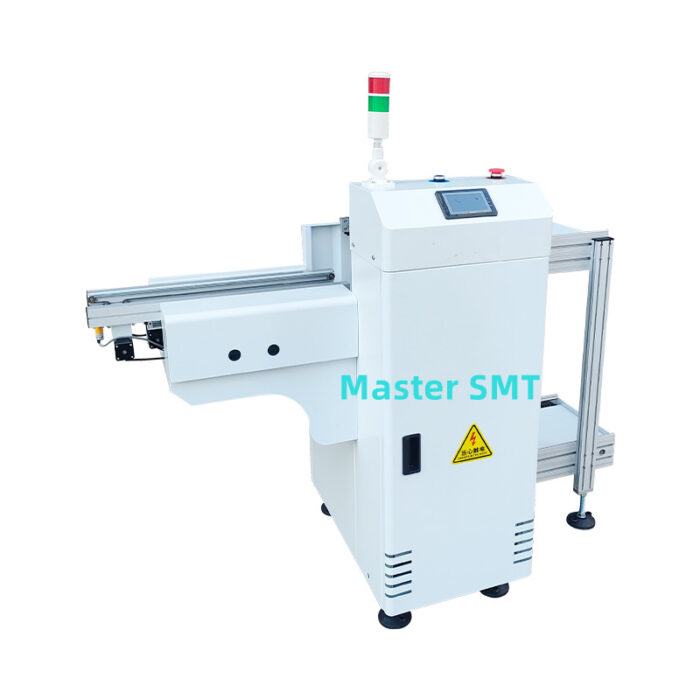

SMT Automatic PCB Unloader to work with SMT Magazine Rack
