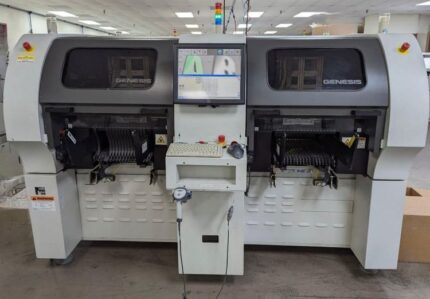

Universal Instruments Genesis GC-120 Pick & Place Machine
Back to products
Universal Instruments Genesis GC-30 Pick & Place Machine

Universal Instruments Genesis GC-60 Pick & Place Machine

Enquiry
Categories: ,
Description

Two 30-spindle rotary Lightning placement heads
• Dual on-the-head camera optics
• Spec Speed: 0.063 sec (57,000 cph)
• Range: 0402mm (01005) – 30mm x 30mm
• Vision capable of 217μm pitch bumped devices
• Max PCB Size: W508mm x L635mm (20″ x 25″)
• Feeder inputs: 136 (dual-lane 8mm tape)
• Feeder types: tape

Shipping & Delivery
