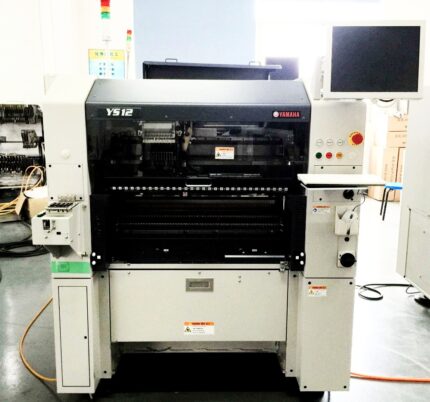

Yamaha YS12 small high-speed module placement machine

Yamaha placement machine YS24 mounter

Enquiry
Categories: SMT placement machine, Yamaha
Share:
  • Description
  • Shipping & Delivery
Description

Yamaha placement machine YS24, small ultra-high speed module placement machine

yamaha ys24 features:
72,000CPH(0.05sec/CHIP) ** placement capacity Newly developed double-stage conveying table
Area productivity of 34kCPH/㎡
L700×W460mm Corresponds to ultra-large substrates
Compatible with Yamaha Dual Carriage Rail System
120 * Maximum number of feeders
0402~32×32mm corresponding components

yamaha ys24 basic specifications:
Model: YS24
Target substrate: L50×W50mm~L700×W460mm
Mounting capacity: 72,000CPH (0.05 seconds/CHIP: the best condition of our company)
Mounting accuracy: ±0.05mm (μ+3σ), ±0.03mm (3σ)
Applicable components: 0402~□32mm MAX (under 6.5mm in height)
Component types: 120 types (maximum/converted to 8mm tape)
Power specification: three-phase AC 200/208/220/240/380/400/416 V ±10%
Air supply source: above 0.45MPa, clean and dry
Dimensions: L1,254×W1,687×H1,445mm (excluding the protruding part)
Main body weight: about 1,700kg

Shipping & Delivery
wd-ship-1
wd-ship-2

MAECENAS IACULIS

Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.

ADIPISCING CONVALLIS BULUM

  • Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
  • Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
  • Diam parturient dictumst parturient scelerisque nibh lectus.

Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.

Reviews

There are no reviews yet.

Be the first to review “Yamaha placement machine YS24 mounter” Cancel reply

Your email address will not be published. Required fields are marked *

Related products

SMT placement machine SIPLACE ASM Siemens D4/D3/D2/D1 high-speed placement machine

SMT placement machine, ASM SIEMENS
ASM Siemens high-speed placement machine D4 technical data: Performance Theoretical value up to 81,500CPH IPC value up to 57,000CPH Accuracy
Enquiry

Super High Efficiency Dual Lane Modular YRM20DL Mounter placement machine

SMT placement machine, Yamaha

Specifications

Model YRM20
Super high-speed rotary RM head High-speed general-purpose in-line HM head Odd-shaped components in-line FM (flexible-multi) head
Nozzles (per 1 head unit) 18 10 5
Applicable components 0201mm to W12 x L12mm, Height 6.5mm or less 0201mm to W55 x L100mm, Height 15mm or less 03015mm to W55 x L100mm, Height 30mm or less
Mounting capability (under optimum conditions) 120,000CPH Note 1 100,000CPH Note 1 35,000CPH
Mounting accuracy (under optimum conditions) ±0.015mm Cpk≧1.0 Note 2 ±0.035mm Cpk≧1.0
Number of component types Feeder carriage exchange : Max. 128 types = 32 feeders x 4 (conversion for 8mm tape feeder) Fixed plate : Max. 128 types (conversion for 8mm tape feeder), Trays : 60 types (maximum when equipped with eATS30 x 2)
PCB dimensions Single use : L50 x W50mm to L810 x W610mm Dual use : L50 x W50mm to L810 x W330mm
Power supply 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz
Air supply source 0.45MPa or more, in clean, dry state
External dimension (excluding projections) L1,374 x W2,102 x H1,445mm
Weight Approx. 2,550kg (Main unit only)
Enquiry

SMT ASM Siemens Mounter Placement machine SIPLACE SX4

SMT placement machine, ASM SIEMENS
SMT ASM Siemens Mounter SIPLACE SX4 Gantry Quantity: 4 IPC Speed: 102,000cph SIPLACE Benchmark Evaluation: 120,000cph Theoretical Speed: 135,000cph 3σ Angle Accuracy: ±0.05°/3σ
Enquiry

Panasonic Mounter CM402-L Modular Super High Speed placement machine

SMT placement machine, Panasonic
Model name: CM402-L Substrate size: L50mm×W50mm~L510mm×W460mm Substrate replacement time: 0.9s (when the substrate length is below 240mm and under the best conditions) Power supply*1: three-phase AC200V, 3.5kVA Air pressure source*2: 0.49MPa, 150L/min (A.N.R.) Equipment size: W2350mm×D2690mm×H1430mm*3 Weight*4: 3000kg   High-speed placement head Mounting fastest speed: 0.06s/chip (Type A) Mounting accuracy: ±50μm/chip (Cpk≧1) Component size: 0603 chip~L24mm×W24mm   Multifunctional placement head Mounting fastest speed: 0.21s/QFP (Type B) Mounting accuracy: ±35μm/QFP (Cpk≧1) Component size: 0603 chip~L100mm×W90mm
Enquiry

Yamaha Premium High-efficiency Modular YRM20 Mounter placement machine

SMT placement machine, Yamaha

Specifications

Model YRM20
Super high-speed rotary RM head High-speed general-purpose in-line HM head Odd-shaped components in-line FM (flexible-multi) head
Nozzles (per 1 head unit) 18 10 5
Applicable components 0201mm to W12 x L12mm, Height 6.5mm or less 0201mm to W55 x L100mm, Height 15mm or less 03015mm to W55 x L100mm, Height 30mm or less
Mounting capability under optimum conditions (in high production mode) 2-beam : 115,000CPH (under optimum conditions) 1-beam : 57,500CPH (under optimum conditions) 2-beam : 98,000CPH (under optimum conditions) 1-beam : 49,000CPH (under optimum conditions) 2-beam : 35,000CPH (under optimum conditions) 1-beam : 17,500CPH (under optimum conditions)
Mounting accuracy (high-accuracy mode) ±0.025mm Cpk≧1.0 (under optimum conditions) ±0.035mm Cpk≧1.0 (under optimum conditions)
Number of component types Feeder carriage exchange : Max. 128 types = 32 feeders x 4 (conversion for 8mm tape feeder) Fixed plate : Max. 128 types (conversion for 8mm tape feeder), Trays : 60 types (maximum when equipped with eATS30 x 2)
PCB dimensions 1-beam : (Single lane) Standard specifications : L50 x W50mm to L510 x W510mm, option : L50 x W50mm to L810 x W510mm 2-beam : (Dual stage) 1-PCB conveyance : L50 x W50mm to L810 x W510mm, 2-PCB conveyance : L50 x W50mm to L380 x W510mm
Power supply 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz
Air supply source 0.45MPa or more, in clean, dry state
External dimension (excluding projections) L1,374 x W1,948 x H1,445mm
Weight 2-beam : Approx. 2,250kg (Main unit only), 1-beam : Approx. 2,150kg (Main unit only)
Enquiry

SMT placement machine Samsung placement machine SM471Plus

SMT placement machine, Samsung Hanwha
High-performance chip shooter with a new fly camera · World's highest speed of 78,000CPH among chip shooters of the same class · With two gantry dual-lane construction, supports various production modes

Specifications

Alignment
Fly Camera
Spindle & Speed
2 Gantry * 10 Spindle / 78,000 CPH
Accuracy
±40μm@±3σ (Chip) / ±50μm@±3σ (QFP)
Component Range
0402 ~ □14mm
Dimension
L 1,650 x D 1,690 x H 2,045
Enquiry

High-efficiency Modular Z:LEX YSM20WR Mounter placement machine

SMT placement machine, Yamaha

Specifications

Model YSM20WR
Applicable PCB Dual lane Note 1 Same type PCBs: L810 x W356 to L50 x W50 Different type PCBs: up to L810 x W662 Note 2 Same type PCB: L810 x W280 to L50 x W500 Different type PCBs: up to L810 x W510
Head / Applicable components High-Speed Multi (HM) Head Note 3 0201mm to W55 x L100mm, Height 15mm or less Odd-shaped components (FM: Flexible Multi) head: 03015mm to W55 x L100mm, Height 28mm or less
Mounting capability (under optimum conditions as defined by Yamaha Motor) X axis 2-beam Note 1: High-speed multi-purpose (HM: High-speed Multi) head x 2 81,000CPH
Mounting accuracy ±0.035mm (±0.025mm) Cpk≧1.0 (3σ) (under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used)
Number of component Types Fixed plate: Max. 140 types (conversion for 8mm tape feeder) Feeder carriage exchange: Max. 128 types (conversion for 8mm tape feeder) Trays for 30 types (Fixed type: max., when fitted with sATS30) and 10 types (Carriage type: max., when fitted with cATS10)
Power supply 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz
Air supply source 0.45MPa or more, in clean, dry state
External dimension (excluding projections) L 1,374 x W 2,110 x H1,445mm (Main unit only)
Weight Approx. 2,500kg (Main unit only)
Note 1 : When using conveyor separation specifications of 787mm between 1 to 4 lanes
Note 2 : When using conveyor separation specifications of 630mm between 1 to 4 lanes
Note 3 : Please contact us for info regarding mounting 0201mm components.
Specifications and appearance are subject to change without prior notice.
Enquiry

SMT placement machine Siemens ASM SIPLACE HS50 high-speed placement machine

SMT placement machine, ASM SIEMENS
1. The size of the parts that can be attached: from 0201 (0.25mmx0.5mm) to 18.7mmx18.7mm. 2. The types of parts that can be loaded at one time: 144 types (8mm parts). 3. SMT speed: 50,000 parts/hour. 4. Chip accuracy: ±0.075 (at 4sigma). 5. Material station: 144
