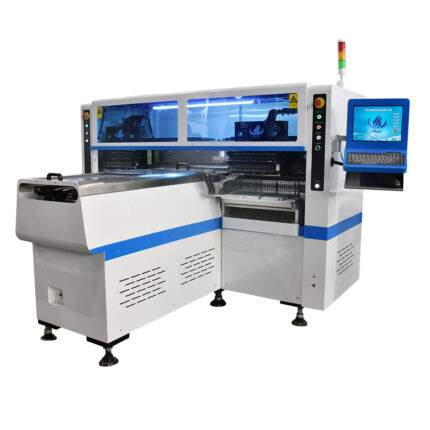

ETON HT-F9 Magnetic levitation high-speed placement machine Pick&Place machine
Back to products
ETON HT-XF High Speed Mounter Pick&Place machine

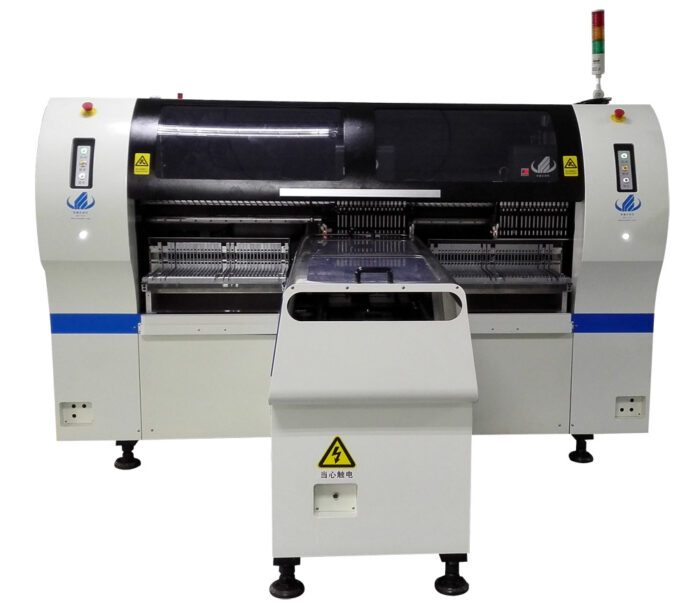

ETON HT-F7 High Speed Pick&Place machine

Enquiry
Categories: ,
Description

Dimensions:

Length 2700mm Width 2450mm 1530mm high

Total weight :1400Kg

Circuit board PCB board size: 330*1200mm Minimum: 330*80mm

PCB board thickness Thickness: 0.5 to 5mm

PCB board fixing method Software automatic adjustment, fixed PCB board

Place method Group pick and group place

OS: Windows 7

Software: independent research and development

Display: LED display

Input device: keyboard, mouse

Vision system: Visual alignment, MARK correction
Number of cameras: Five sets of imported cameras

Repeatability: ±0.02mm

Place height: <15mm

Place speed: 100000~150000 CPH

Mounting parts range: LED 3014/3020/3528/5050 etc.

Component span: 0.2mm

The number of feeders: 68PCS

Number of  nozzles: a total of 34  nozzles in the double module
