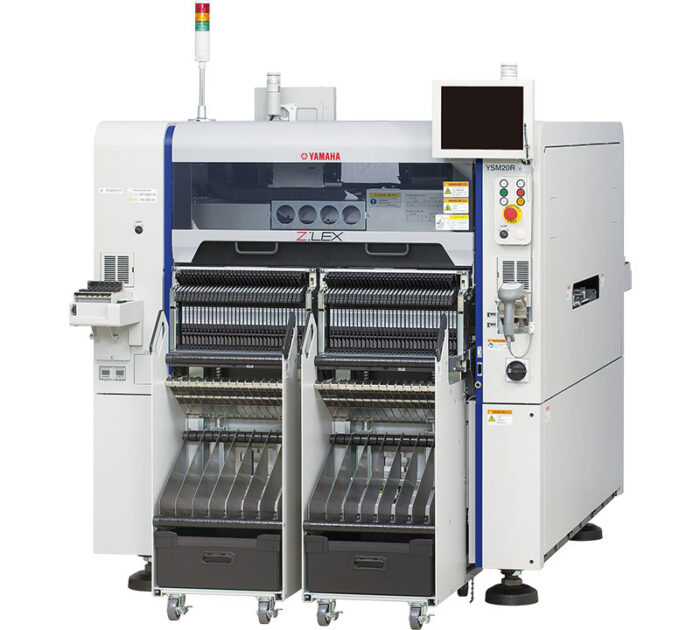

High-efficiency Modular Z:LEX YSM20WR Mounter placement machine

Specifications

Model	YSM20WR
Applicable PCB	Dual lane ^{Note 1} Same type PCBs: L810 x W356 to L50 x W50 Different type PCBs: up to L810 x W662 ^{Note 2} Same type PCB: L810 x W280 to L50 x W500 Different type PCBs: up to L810 x W510
Head / Applicable components	High-Speed Multi (HM) Head ^{Note 3} 0201mm to W55 x L100mm, Height 15mm or less Odd-shaped components (FM: Flexible Multi) head: 03015mm to W55 x L100mm, Height 28mm or less
Mounting capability (under optimum conditions as defined by Yamaha Motor)	X axis 2-beam ^{Note 1}: High-speed multi-purpose (HM: High-speed Multi) head x 2 81,000CPH
Mounting accuracy	±0.035mm (±0.025mm) Cpk≧1.0 (3σ) (under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used)
Number of component Types	Fixed plate: Max. 140 types (conversion for 8mm tape feeder) Feeder carriage exchange: Max. 128 types (conversion for 8mm tape feeder) Trays for 30 types (Fixed type: max., when fitted with sATS30) and 10 types (Carriage type: max., when fitted with cATS10)
Power supply	3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz
Air supply source	0.45MPa or more, in clean, dry state
External dimension (excluding projections)	L 1,374 x W 2,110 x H1,445mm (Main unit only)
Weight	Approx. 2,500kg (Main unit only)

Note 1 : When using conveyor separation specifications of 787mm between 1 to 4 lanes

Note 2 : When using conveyor separation specifications of 630mm between 1 to 4 lanes

Note 3 : Please contact us for info regarding mounting 0201mm components.

Specifications and appearance are subject to change without prior notice.

Enquiry

Achieves both a whole new dimension of versatility and high-speed for mounters via the 1-head solution

1-head solution

Two types of heads are available that bring the “1-head solution” to an even higher dimension capable of accommodating a wide range of components while maintaining high speed with no head replacement. High-speed general-purpose heads can be used for ultra-small (0201mm) chip components.

High-speed multi-purpose (HM : High-speed Multi) head

This universal type head made for high-speed mouuting and versatility supports from ultra-tiny chips of 0201mm to large-size components of 55 x 100 mm and height of 15 mm.

Odd-shaped components (FM : Flexible Multi) head

Super wide-ranging type head supports load control, and handles a broad spectrum of components from ultra-tiny chips of 03015mm, to ultra-large components of 55 x 100 mm and tall components of heights to 28 mm.

Huge improved adaptability to actual production

Mounting a new type wide-scan camera increases and expands recognition capability to support high speed mounting of components down to only □8 mm to □12 mm in size. Also, use of side lighting gives high-speed recognition of ball electrode components such as CSP (chip scale packages) and BGA (ball grid arrays).

Beam variations available in 2 types

Achieving a common platform allows selecting from 1-beam and 2-beam for configuring the X-axis according to production mode and mounting capability.

Wide support capability turns the concept of “Limitless EXpansion” into a reality!

Compatible components

Conveyors available in freely configurable variations

Easily links with Z:TA-R, allowing a configuring a dual-lane line that best matches your production style.(When using conveyor separation specifications of 630mm between 1 to 4 lanes) Single lane is also available in super large size specification of Max. PCB thickness of 8.0mm or Max. PCB weight of 10kg.

Dual lane
conveyance of 2 boards with Same type PCBs
**W=356**

Dual lane
Conveys 2 boards of Different type PCBs
**W=662**

Numerous functions to support high-quality mounting are included as standard features.

Side view function

Detects pickup status and component’s presenge with no downtime loss.

Blow station

Automatic blow cleaning function keeps nozzle clean for long periods.

High-speed smart recognition

Highly robust “High-speed Smart Recognition” that also creates recognition data for custom or unique components in a short time is now standard equipment.

Accumulation of all images (All Image Tracer)

Saves all of your mounter component recognition images on-time, and all the way through the production process yet with no stress. Gives powerful support for analyzing component mounting quality.

Achieves highly-streamlined components supply

sATS30NS Auto Tray Sequencer (ATS) for nonstop tray replacement

In addition to sATS30 and cATS10, automatic replaceable tray component feeders, sATS30NS which enables pallet replacement with automatic operation continued has been added to the product lineup. Supply of pallets to the magazine is complete just by setting new pallets in exchange for empty pallets that have been automatically ejected and pressing a button. It is possible to set magazines at once in the setup process, achieving a substantial reduction in trouble and loss regarding component supply.

Auto Loading Feeder

Tape components can be supplied just by inserting the tape without stopping the machine. The unique center open technique from Yamaha drastically reduces components pickup errors that occur from static electricity and the residue when peeled from the tape. No recovery of top tape is needed which vastly increases the operating rate.

ZSR feeder

Super-slim, ultra-light electric intelligent feeder that realizes high workability and reduction of work burdens of operators. With its high durability, comfortable workability is supported without maintenance over an extended period of time.

MAECENAS IACULIS

Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.

ADIPISCING CONVALLIS BULUM

Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
Diam parturient dictumst parturient scelerisque nibh lectus.

Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.

Click to enlarge

Back to products

Model	YSM20WR
Applicable PCB	Dual lane ^{Note 1} Same type PCBs: L810 x W356 to L50 x W50 Different type PCBs: up to L810 x W662 ^{Note 2} Same type PCB: L810 x W280 to L50 x W500 Different type PCBs: up to L810 x W510
Head / Applicable components	High-Speed Multi (HM) Head ^{Note 3} 0201mm to W55 x L100mm, Height 15mm or less Odd-shaped components (FM: Flexible Multi) head: 03015mm to W55 x L100mm, Height 28mm or less
Mounting capability (under optimum conditions as defined by Yamaha Motor)	X axis 2-beam ^{Note 1}: High-speed multi-purpose (HM: High-speed Multi) head x 2 81,000CPH
Mounting accuracy	±0.035mm (±0.025mm) Cpk≧1.0 (3σ) (under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used)
Number of component Types	Fixed plate: Max. 140 types (conversion for 8mm tape feeder) Feeder carriage exchange: Max. 128 types (conversion for 8mm tape feeder) Trays for 30 types (Fixed type: max., when fitted with sATS30) and 10 types (Carriage type: max., when fitted with cATS10)
Power supply	3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz
Air supply source	0.45MPa or more, in clean, dry state
External dimension (excluding projections)	L 1,374 x W 2,110 x H1,445mm (Main unit only)
Weight	Approx. 2,500kg (Main unit only)
