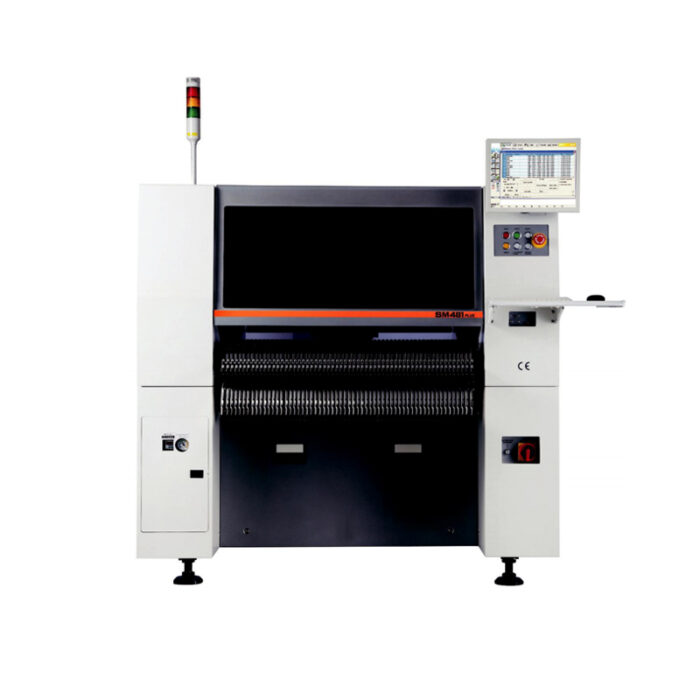

SMT Samsung Mounter SM481Plus 481

Specifications

Alignment
Fly Camera + Fix Camera (Option)
Spindle & Speed
1 Gantry * 10 Spindle / 40,000 CPH
Accuracy
±40μm@±3σ (Chip) / ±30μm@±3σ(QFP)
Component Range
Fly: 0402 ~ □16mm / Fix: ~□55mm, L75mm Connector
Dimension
L 1,650 x D 1,680 x H 2,090

σ/QFP

Enquiry
Categories: ,
Description

Features

  • 이미지

    Performance

    One-Side Operation
    With single gantry and single lane structures optimized for machine operation using only one side of the machine, the production area and manpower can be utilized efficiently.

  • 이미지

    Flexible Production

    Applicable to 1,500mm Long Board
    Applicable up to 1,500mm long-board mounting through two stepped placement using an extension conveyor

  • 이미지

    Reliability

    Mixed Use of Electric Feeder and Pneumatic Feeder
    Allows mixed use of electric and pneumatic feeders in the same feeder base, minimizing production investment costs by using existing feeders together

  • 이미지

    Easy Operation

    Panorama View Function
    Merges the split component images to display them into one, allowing easy pickup and placement position adjustment of large components and irregular shaped SMD components.

.
