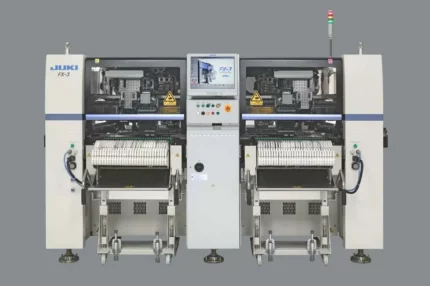

JUKI High-Speed Modular Mounter FX-3RA placement pick and palce machine

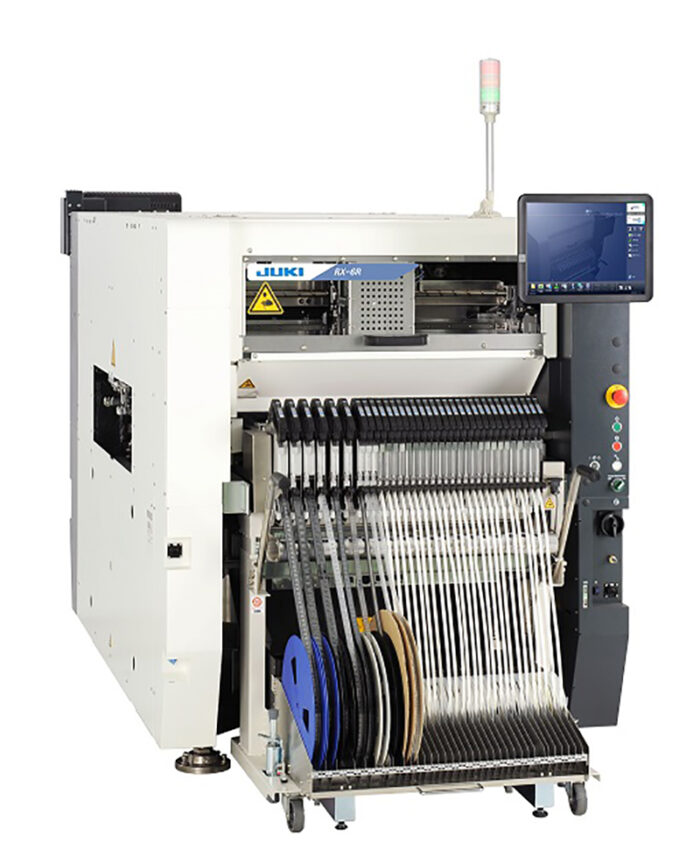

JUKI High-Speed Compact Modular Mounter RX-6R/RX-6B placement pick and palce machine

Features

Placement speed Chip : 52,000CPH*2
IC : 14,000CPH*3
Component size 0402mm(01005 inch) ~ 50mm×50mm*4
0402mm(01005 inch) ~ 100mm×100mm / 50×180mm*5
Board size Single lane conveyor:
50×50 ~ 610×590 / 905×590(2times clamping)
Dual lane conveyor*6:
50×50 ~ 360×250 / 360×450(single lane conveyor specification mode)
Head unit 6×6nozzle head
6×3nozzle head *6
  • This is applicable to dual-lane production.*6
  • Compact footprint : the width is just 1.25m
  • Equipped with standard Placement Monitor check function.*1
  • Replaceable head allow you to configure a production line best suited to the current repirments.*6
  • High-speed component placement using high-speed non-stop vision recognition.*3
  • Wide range of components and boards: tall components, large components and large boards.
  • Brand new Matrix Tray Sever TR8S improves the component capability and productivity.


*1 Only available RX-6B 6 nozzle head
*2 When using RX-6R
*3 Option
*4 When using RX-6R/RX-6B 6×6 nozzle head
*5 When using RX-6B 6×3 nozzle head
*6 Only available RX-6B

Enquiry
Categories: ,
Description

Specification

High-Speed Compact Modular Mounter RX-6R
Board size Single lane conveyor 50×50 ~ 610×590 / 905×590mm(2times clamping)
Dual lane conveyor –
Component height 6 / 12 / 20mm
Component size Laser recognition 0402 ~ 50mm×50mm
Vision recognition*2 Standard camera 3mm×3mm ~ 33.5mm×33.5mm
High-resolution camera 1005 ~ 24mm×24mm
Placement speed Chip Optimum*3 52,000CPH
IPC9850 29,000CPH
IC*4 14,000CPH
Placement accuracy Laser recognition ±0.04mm(Cpk≧1)*5
Vision recognition*2 ±0.04mm
Component loading quantity Max.160 in case of 8mm tape
(on a Electric double tape feeder)
High-Speed Compact Modular Mounter RX-6B (6×6 nozzle head)
Board size Single lane conveyor 50×50 ~ 610×590 / 905×590mm (2 times clamping)
Dual lane conveyor 50×50 ~ 360×250mm*1
Component height 6 / 12 / 20 / 25 / 33mm
Component size Laser recognition 0402 ~ 50mm×50mm
Vision recognition*2 Standard camera 3mm×3mm ~ 33.5mm×33.5mm
High-resolution camera 1005 ~ 20mm×20mm
Placement speed Chip Optimum*3 42,000CPH
IPC9850 26,000CPH
IC*4 14,000CPH
Placement accuracy Laser recognition ±0.04mm(Cpk≧1)
Vision recognition*2 ±0.04mm
Component loading quantity Max.160 in case of 8mm tape(on a Electric double tape feeder)
High-Speed Compact Modular Mounter RX-6B (6×3 nozzle head)
Board size Single lane conveyor 50×50 ~ 610×590 / 905×590mm (2times clamping)
Dual lane conveyor 50×50 ~ 360×250mm*1
Component height 6 / 12 / 20 / 25 / 33mm
Component size Laser recognition 0402 ~ 33.5mm×33.5mm
Vision recognition*2 Standard camera 3mm×3mm ~ 100mm×100mm / 50×180mm
High-resolution camera 1005 ~ 48mm×48mm / 24mm×72mm
Placement speed Chip Option*3 34,000CPH
IPC9850 23,000CPH
IC*4 11,000CPH
Placement accuracy Laser recognition ±0.04mm(Cpk≧1)
Vision recognition*2 ±0.03mm
Placement loading quantity Max.160 in case of 8mm tape
(on a Electric double tape feeder)


*1 Single lane conveyor specification mode max 360×450mm
*2 Option
*3 When using the single lane conveyor specification
*4 Placement speed of IC components is estimated value when placing 36 pieces QFP component (dimension 10mm square or smaller) on M size PWB overall,picking from both front and rear side with all nozzles simultaneously.
*5 Under the JUKI condition
