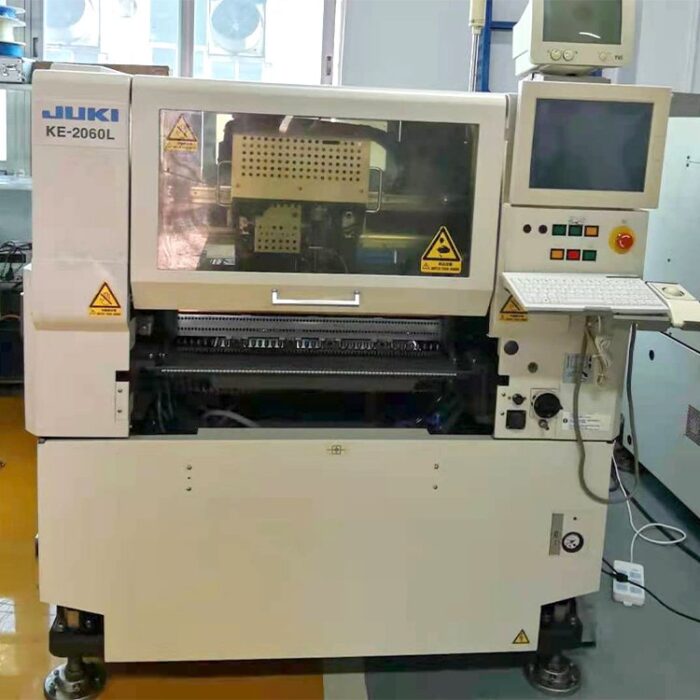

Equipment detailed parameter introduction: JUKI placement machine KE-2060
Working head: multi-laser placement head*1 (4 suction nozzles) high-resolution visual placement head*1 (1 suction nozzle)
Substrate size mm: 330*250mm
410*360mm
510*360mm
510*460mm
Component height: 0603 (English 0201) chip-74mm square component or 50*150mm component (laser recognition, image recognition)
Image recognition: reflection type, transmission type recognition, seeking recognition, segmentation recognition
Component placement speed: 12500CPH
IC: 1850CPH
MNVC:3400CPH
Mounting accuracy: plus or minus 0.05mm
Image: plus or minus 0.03mm
Number of component material stations: 80 stations (converted into 8mm tape)
Description
Shipping & Delivery
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products
Panasonic Mounter CM402-L Modular Super High Speed placement machine
Model name: CM402-L
Substrate size: L50mm×W50mm～L510mm×W460mm
Substrate replacement time: 0.9s (when the substrate length is below 240mm and under the best conditions)
Power supply*1: three-phase AC200V, 3.5kVA
Air pressure source*2: 0.49MPa, 150L/min (A.N.R.)
Equipment size: W2350mm×D2690mm×H1430mm*3
Weight*4: 3000kg
High-speed placement head
Mounting fastest speed: 0.06s/chip (Type A)
Mounting accuracy: ±50μm/chip (Cpk≧1)
Component size: 0603 chip~L24mm×W24mm
Multifunctional placement head
Mounting fastest speed: 0.21s/QFP (Type B)
Mounting accuracy: ±35μm/QFP (Cpk≧1)
Component size: 0603 chip~L100mm×W90mm
Panasonic Mounter CM602-L high-speed placement machine
Control mode: microcomputer mode
External memory: Manage data at PT∗4. Each set of data requires about 1MB. (1 type is required for each 1 type 3.5 2HD floppy disk)
Program data: Points Max. 10000 points
CM602 power supply
Power supply for normal use: 3-phase AC 200 V/ 220 V ±10 V, 3-phase AC 380 V/ 400 V/ 420 V/ 480 V ±20 V Frequency: 50/60 Hz
Power supply for HUB ∗ 3: Single-phase AC 100 V ~ AC 240 V Frequency: 50/60 Hz
Rated capacity: main machine 4.0 kVA / HUB power supply ∗ 3: 140 VA
Supply air pressure: 0.49 MPa ~ 0.78 MPa (operating air pressure is 0.49 MPa ~ 0.54 MPa)
Supply air volume: 170 L/min (A.N.R.)
Dimensions: 2350 mm (W) × 2690 mm (D) × 1430 mm (H) (excluding 3-section signal tower and color touch panel)
quality:
Mass of the main engine: 3400 kg (140 kg for the standard configuration without the overall exchange trolley)
Overall exchange trolley mass: 140 kg (per 1)
Direct tray feeder mass: 195 kg (per 1 unit)
Standard composition mass: 3960 kg (1 main engine, 4 overall exchange trolleys)
Environmental conditions: Temperature: 10°C ~ 35°C Humidity: 25% RH ~ 75% RH (but water vapor does not condense)
Transport and storage conditions: Temperature: −20°C ~ 60°C Humidity: Below 75 % RH (but water vapor does not condense)
Altitude: from 0 m above sea level to below 1000 m
Noise: < 70dB (A)
Yamaha Ultra-High-Speed Modular Z:TA-R YSM40R Mounter placement machine
Specifications
| Z:TA-R YSM40R | ||
|---|---|---|
| 4-Beam, 4-Head Spec. (YSM40R-4) | ||
| Applicable PCB | L700×W460mm to L50×W50mm | |
| Mounting capability (under optimum conditions as defined by Yamaha Motor) | 200,000CPH (When using RS head) | |
| Applicable components | Ultra-High-Speed (RS) Head | 0201mm* to □6.5mm (Height 2.0mm or less) *option |
| Multi (MU) Head | 03015mm to 45×60mm (Height 15mm or less) | |
| Mounting accuracy (Under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used) | +/-35μm (25μm) Cpk ≧1.0 (3σ) | |
| Number of component types * 8mm width tape conversion | Max. 80 feeders with RS heads Max. 88 feeders with MU heads Max. 84 feeders with RS x 2 + MU x 2 heads | |
| Power supply | 3-Phase AC 200/208/220/240/380/400/416V +/-10% | |
| Air supply source | 0.45MPa or more, in clean, dry state | |
| External dimension | L1,000×W2,100×H1,550mm (excluding projections) | |
| Weight | Approx. 2,100 kg | |
Yamaha Wide-Range Compact Modular YC8 Mounter placement machine
Specifications
| YC8 | ||
|---|---|---|
| Applicable PCB | L50 x W50mm to L330 x W360mm *1 | |
| Mounting accuracy | When using Yamaha's standard components | Absolute accuracy (μ+3σ):+/-0.05mm /QFP Repeatability(3σ) +/-0.03mm /QFP |
| Mounting capability | Indication | 2.5sec/component (Cycle time from a pickup to mounting with recognition) |
| Applicable components | 4 x 4mm to 100 x 100mm *2 (Some components larger than 45 x 45mm ane conditional) Maximum components heights 45mm Maximum payload 1kg | |
| Component supply configuration: Number of component types | Tape reel : MAX. 28 types (8mm width) Tray : MAX. 15 trays Stick | |
| Power supply | 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz | |
| Air supply source | 0.45MPa or more, in clean, dry states | |
| External dimension (excluding projections) | L 880 x W1,440 x H1,445mm (Main unit only) L 880 x W1,755 x H1,500mm (When ATS15 is installed) | |
| Weight | Approx. 1,000kg (Main unit only) ATS15 : Approx. 120kg | |
- *1
- Please consult us separately for maximum board sizes.
- *2
- Consult us separately regarding component sizes outside the specifications.
- Specifications and appearance are subject to change without prior notice.
Yamaha Premium High-efficiency Modular YRM20 Mounter placement machine
Specifications
| Model | YRM20 | ||
|---|---|---|---|
| Super high-speed rotary RM head | High-speed general-purpose in-line HM head | Odd-shaped components in-line FM (flexible-multi) head | |
| Nozzles (per 1 head unit) | 18 | 10 | 5 |
| Applicable components | 0201mm to W12 x L12mm, Height 6.5mm or less | 0201mm to W55 x L100mm, Height 15mm or less | 03015mm to W55 x L100mm, Height 30mm or less |
| Mounting capability under optimum conditions (in high production mode) | 2-beam : 115,000CPH (under optimum conditions) 1-beam : 57,500CPH (under optimum conditions) | 2-beam : 98,000CPH (under optimum conditions) 1-beam : 49,000CPH (under optimum conditions) | 2-beam : 35,000CPH (under optimum conditions) 1-beam : 17,500CPH (under optimum conditions) |
| Mounting accuracy (high-accuracy mode) | ±0.025mm Cpk≧1.0 (under optimum conditions) | ±0.035mm Cpk≧1.0 (under optimum conditions) | |
| Number of component types | Feeder carriage exchange : Max. 128 types = 32 feeders x 4 (conversion for 8mm tape feeder) Fixed plate : Max. 128 types (conversion for 8mm tape feeder), Trays : 60 types (maximum when equipped with eATS30 x 2) | ||
| PCB dimensions | 1-beam : (Single lane) Standard specifications : L50 x W50mm to L510 x W510mm, option : L50 x W50mm to L810 x W510mm 2-beam : (Dual stage) 1-PCB conveyance : L50 x W50mm to L810 x W510mm, 2-PCB conveyance : L50 x W50mm to L380 x W510mm | ||
| Power supply | 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz | ||
| Air supply source | 0.45MPa or more, in clean, dry state | ||
| External dimension (excluding projections) | L1,374 x W1,948 x H1,445mm | ||
| Weight | 2-beam : Approx. 2,250kg (Main unit only), 1-beam : Approx. 2,150kg (Main unit only) | ||
High-efficiency Modular Z:LEX YSM20WR Mounter placement machine
Specifications
| Model | YSM20WR |
|---|---|
| Applicable PCB | Dual lane Note 1 Same type PCBs: L810 x W356 to L50 x W50 Different type PCBs: up to L810 x W662 Note 2 Same type PCB: L810 x W280 to L50 x W500 Different type PCBs: up to L810 x W510 |
| Head / Applicable components | High-Speed Multi (HM) Head Note 3 0201mm to W55 x L100mm, Height 15mm or less Odd-shaped components (FM: Flexible Multi) head: 03015mm to W55 x L100mm, Height 28mm or less |
| Mounting capability (under optimum conditions as defined by Yamaha Motor) | X axis 2-beam Note 1: High-speed multi-purpose (HM: High-speed Multi) head x 2 81,000CPH |
| Mounting accuracy | ±0.035mm (±0.025mm) Cpk≧1.0 (3σ) (under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used) |
| Number of component Types | Fixed plate: Max. 140 types (conversion for 8mm tape feeder) Feeder carriage exchange: Max. 128 types (conversion for 8mm tape feeder) Trays for 30 types (Fixed type: max., when fitted with sATS30) and 10 types (Carriage type: max., when fitted with cATS10) |
| Power supply | 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz |
| Air supply source | 0.45MPa or more, in clean, dry state |
| External dimension (excluding projections) | L 1,374 x W 2,110 x H1,445mm (Main unit only) |
| Weight | Approx. 2,500kg (Main unit only) |
- Note 1 : When using conveyor separation specifications of 787mm between 1 to 4 lanes
- Note 2 : When using conveyor separation specifications of 630mm between 1 to 4 lanes
- Note 3 : Please contact us for info regarding mounting 0201mm components.
- Specifications and appearance are subject to change without prior notice.
Yamaha 3D Hybrid Modular S10/S20 Mounter placement machine
Specifications
| S10 | S20 | |
|---|---|---|
| Board size(with buffer unused) | Min. L50 x W30mm to Max. L1,330 x W510mm (Standard L955) | Min. L50 x W30mm to Max. L1,830 x W510mm (Standard L1,455) |
| Board size(with input or output buffer used) | Min. L50 x W30mm to Max. L420 x W510mm | - |
| Board size(with input and output buffers used) | Min. L50 x W30mm to Max. L330 x W510mm | Min. L50 x W30mm to Max. L540 x W510mm |
| Board thickness | 0.4 - 4.8mm | 0.4 - 4.8mm |
| Board flow direction | Left to right (Std) | Left to right (Std) |
| Board transfer speed | Max 900mm/sec | Max 900mm/sec |
| Placement speed (12 heads + 2 theta) Opt. Cond. | 0.08sec/CHIP (45,000CPH) | 0.08sec/CHIP (45,000CPH) |
| Placement accuracy A (μ+3σ) | CHIP +/-0.040mm | CHIP +/-0.040mm |
| Placement accuracy B (μ+3σ) | IC +/-0.025mm | IC +/-0.025mm |
| Placement angle | +/-180 degrees | +/-180 degrees |
| Z axis control / Theta axis control | AC servo motor | AC servo motor |
| Component height | Max 30mm*1 (Pre-placed components: max 25mm) | Max 30mm*1 (Pre-placed components: max 25mm) |
| Applicable components | 0201mm – 120x90mm, BGA, CSP, connector, etc. (Standard 01005 -) | 0201mm – 120x90mm, BGA, CSP, connector, etc. (Standard 01005 -) |
| Component package | 8 - 56mm tape (F1/F2 Feeders), 8 - 88mm tape (F3 Electric Feeders), stick, tray | 8 - 56mm tape (F1/F2 Feeders), 8 - 88mm tape (F3 Electric Feeders), stick, tray |
| Drawback check | Vacuum check and vision check | Vacuum check and vision check |
| Screen language | English, Chinese, Korean, Japanese | English, Chinese, Korean, Japanese |
| Board positioning | Board grip unit, front reference, auto conveyor width adjustment | Board grip unit, front reference, auto conveyor width adjustment |
| Component types | Max 90 types (8mm tape), 45 lanes x 2 | Max 180 types (8mm tape), 45 lanes x 4 |
| Transfer height | 900 +/- 20mm | 900 +/- 20mm |
| Machine dimensions, weight | L1250xD1750xH1420mm, Approx. 1,200kg | L1750xD1750xH1420mm, Approx. 1,500kg |
- *1 :
- Board thickness + Component height = Max 30mm
- Specifications and appearance are subject to change without prior notice.
