JUKI RX-7R High Speed Modular Mounter placement pick and palce machine
Back to products

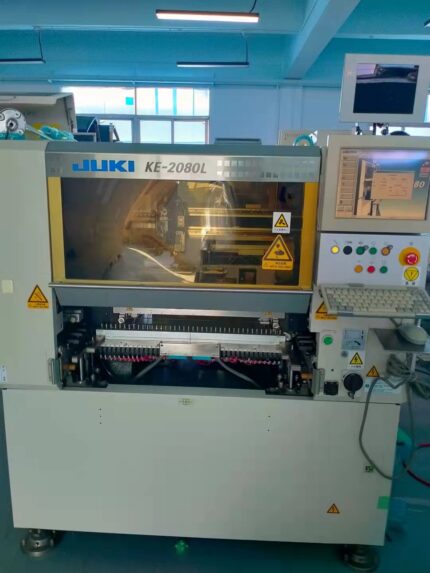

JUKI multifunctional high-speed placement machine KE2080 pick and palce machine Mounter

JUKI placement pick and palce machine 2070 Mounter

Enquiry
Categories: ,
Description

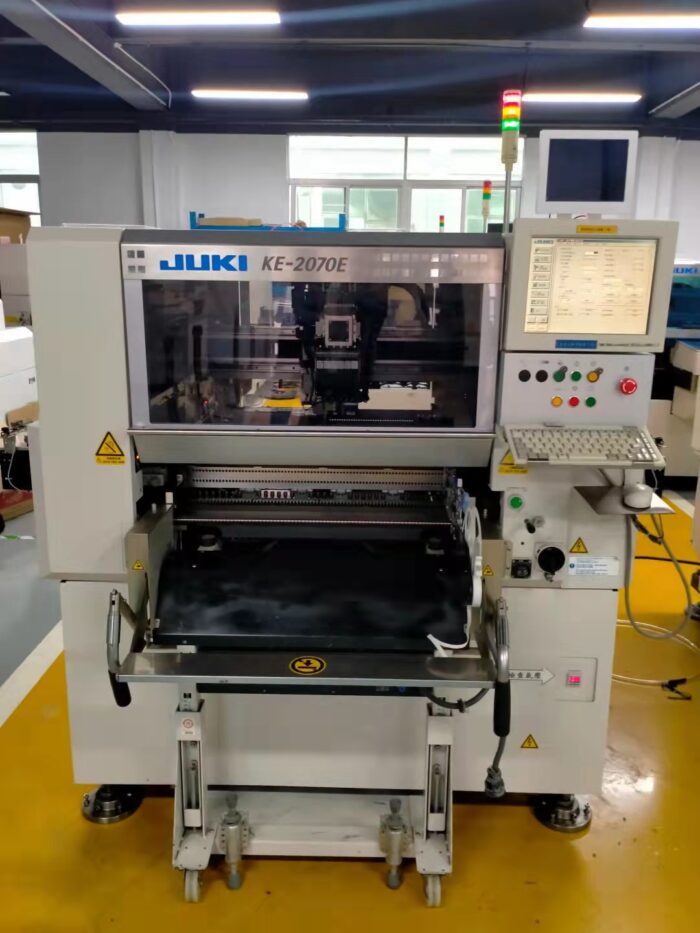

JUKI placement machine 2070
chip components
23,300CPH (laser identification / best condition) (0.155 seconds / chip)
18,300CPH (laser identification / IPC9850)

IC components
4,600CPH (image recognition / when using the MNVC option)

Laser placement head × 1 (6 nozzles)

0402 (Inch 01005) chip ~ 33.5mm square component

Image recognition (with MNVC option: reflective/transmissive recognition, ball recognition)

Substrate size
For M substrate (330×250mm)
For L substrate (410×360mm)
For E substrate (510×460mm)

Component size
Laser recognition 0402 (English 01005) chip ~ 33.5mm square component
Image recognition 1.0×0.5mm～20mm square components

Component placement speed
Chip components Best condition 0.155 seconds/chip (23,300CPH)
IPC9850 18,300CPH
IC components 4,600CPH
Actual work efficiency: The placement speed of IC components is the converted value when 36 QFP (more than 100 pins) or BGA (more than 256 balls) are mounted on the entire surface of an M-size substrate.

Component placement accuracy
Laser recognition ±0.05mm (Cpk≧1)
Image recognition ±0.04mm

Component Mounting Type
Up to 80 types (converted to 8mm tape)

Shipping & Delivery

MAECENAS IACULIS

Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.

ADIPISCING CONVALLIS BULUM

  • Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
  • Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
  • Diam parturient dictumst parturient scelerisque nibh lectus.

Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.

Reviews

There are no reviews yet.

Be the first to review “JUKI placement pick and palce machine 2070 Mounter”

Your email address will not be published. Required fields are marked *

Related products

Yamaha High-efficiency Modular Z:LEX YSM20R Mounter placement machine

,

Specifications

Model YSM20R
Applicable PCB Single lane L810 x W490 to L50 x W50 Dual stage  Note: For X-axis 2-beam option only 1PCB conveyance: L810 x W490 to L50 x W50 2PCB conveyance: L380 x W490 to L50 x W50
Head / Applicable components High-Speed Multi (HM) Head * 0201mm to W55 x L100mm, Height 15mm or less Odd-shaped components (FM: Flexible Multi) head: 03015mm to W55 x L100mm, Height 28mm or less
Mounting capability (under optimum conditions as defined by Yamaha Motor) X axis 2-beam: High-speed multi-purpose (HM: High-speed Multi) head x 2 95,000CPH
Mounting accuracy ±0.035mm (±0.025mm) Cpk≧1.0 (3σ) (under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used)
Number of component Types Fixed plate: Max. 140 types (conversion for 8mm tape feeder) Feeder carriage exchange: Max. 128 types (conversion for 8mm tape feeder) Trays for 30 types (Fixed type: max., when fitted with sATS30) and 10 types (Carriage type: max., when fitted with cATS10)
Power supply 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz
Air supply source 0.45MPa or more, in clean, dry state
External dimension (excluding projections) L 1,374 x W 1,857 x H1,445mm (Main unit only)
Weight Approx. 2,050kg (Main unit only)
Enquiry

Samsung Hanwha High Speed ​​Mounter DECANS2

,

Specifications

Alignment
Fly Camera, Fix Camera
Spindle & Speed
2 Gantry * 10 Spindle / 92,000 CPH
Accuracy
±28 μm @ Cpk ≥ 1.0 (03015 Chip) / ±25 μm @ Cpk ≥ 1.0(IC)
Component Range
Fly: 03015 ~ □12 mm / Fix: ~□42 mm (Standard) / ~□55 mm (MFOV) / ~ L75 mm Connector (MFOV)
Dimension
L 1,430 x D 1,740 x H 1,995
Enquiry

Panasonic NPM-W2 Multifunctional Mounter placement machine

,
Product Features of Panasonic NPM-W2 Multi-Function Mounter 1. Install & inspect a complete system to achieve efficient and high-quality production To match the actual installation requirements, you can choose high-yield or high-precision mode 2. Can correspond to larger substrates and large components Correspondingly, on a large substrate of 750×550 mm, the component range is also expanded to L150×W25×T30mm 3. Double-track installation (select specifications) to achieve high productivity per unit area According to the production substrate, you can choose independent mounting, alternate mounting, mixed mounting and other mounting methods
Enquiry

Yamaha Premium Modular Σ-F8S Mounter placement machine

,

Specifications

Σ-F8S
Applicable PCB Single lane : L330 x W250 to L50 x W50mm (Option : L381 x W510 to L50 x W50mm) Dual lane : L330 x W250 to L50 x W50mm
Head/Applicable components High-speed head : 0201mm CHIP to 4.3 x 3.4mm, Height 2.0mm or less High-speed multi-purpose head : 03015mm CHIP to 33mm square, Height 12.7mm or less
Mounting capability High-speed head x 4 specs : 150,000CPH (Dual lane) 136,000CPH (Single lane)
Mounting accuracy (Under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used) High-speed head : 0201mm/03015mm : ±25μm (3σ) (140,000CPH) 0402mm/0603mm : ±36μm (3σ) (150,000CPH)
Number of component types Max.80 types (conversion for 8mm tape feeder)
Power supply 3-Phase AC200V ±10% 50/60Hz
Air supply source 0.45 to 0.69MPa (4.6 to 7kgf/cm2)
External dimension L 1,280 x W 2,240 x H 1,450mm (excluding projections)
Weight Approx. 1,940kg
Specifications and appearance are subject to change without prior notice.
Enquiry

Yamaha 3D Hybrid Modular S10/S20 Mounter placement machine

,

Specifications

S10 S20
Board size(with buffer unused) Min. L50 x W30mm to Max. L1,330 x W510mm (Standard L955) Min. L50 x W30mm to Max. L1,830 x W510mm (Standard L1,455)
Board size(with input or output buffer used) Min. L50 x W30mm to Max. L420 x W510mm -
Board size(with input and output buffers used) Min. L50 x W30mm to Max. L330 x W510mm Min. L50 x W30mm to Max. L540 x W510mm
Board thickness 0.4 - 4.8mm 0.4 - 4.8mm
Board flow direction Left to right (Std) Left to right (Std)
Board transfer speed Max 900mm/sec Max 900mm/sec
Placement speed (12 heads + 2 theta) Opt. Cond. 0.08sec/CHIP (45,000CPH) 0.08sec/CHIP (45,000CPH)
Placement accuracy A (μ+3σ) CHIP +/-0.040mm CHIP +/-0.040mm
Placement accuracy B (μ+3σ) IC +/-0.025mm IC +/-0.025mm
Placement angle +/-180 degrees +/-180 degrees
Z axis control / Theta axis control AC servo motor AC servo motor
Component height Max 30mm*1 (Pre-placed components: max 25mm) Max 30mm*1 (Pre-placed components: max 25mm)
Applicable components 0201mm – 120x90mm, BGA, CSP, connector, etc. (Standard 01005 -) 0201mm – 120x90mm, BGA, CSP, connector, etc. (Standard 01005 -)
Component package 8 - 56mm tape (F1/F2 Feeders), 8 - 88mm tape (F3 Electric Feeders), stick, tray 8 - 56mm tape (F1/F2 Feeders), 8 - 88mm tape (F3 Electric Feeders), stick, tray
Drawback check Vacuum check and vision check Vacuum check and vision check
Screen language English, Chinese, Korean, Japanese English, Chinese, Korean, Japanese
Board positioning Board grip unit, front reference, auto conveyor width adjustment Board grip unit, front reference, auto conveyor width adjustment
Component types Max 90 types (8mm tape), 45 lanes x 2 Max 180 types (8mm tape), 45 lanes x 4
Transfer height 900 +/- 20mm 900 +/- 20mm
Machine dimensions, weight L1250xD1750xH1420mm, Approx. 1,200kg L1750xD1750xH1420mm, Approx. 1,500kg
*1 :
Board thickness + Component height = Max 30mm
Specifications and appearance are subject to change without prior notice.
Enquiry

Panasonic Mounter NPM-TT2 multifunctional production system placement machine

,
The Panasonic Mounter NPM-TT2 is a line configuration capable of achieving both high productivity per unit area and versatility *When directly connecting the NPM-W2, an M-size double-track conveyor belt (optional) is required. The placement head (8-nozzle placement head, 3-nozzle placement head - you can choose the general-purpose 8-nozzle placement head or the 3-nozzle placement head with special-shaped component capability) The specification of the supply part can be selected .change. By reorganizing the tray feeder/exchange trolley, the line configuration can be adapted to the component supply form. Using a multi-functional recognition camera, the recognition and inspection of the height direction of the components can be realized at a high speed, and it can carry out stable and high-speed mounting of special-shaped components) Alternate mounting and independent mounting correspondence ——(can choose the best mounting method corresponding to the production substrate)
Enquiry

SMT placement machine SIPLACE ASM Siemens D4/D3/D2/D1 high-speed placement machine

,
ASM Siemens high-speed placement machine D4 technical data: Performance Theoretical value up to 81,500CPH IPC value up to 57,000CPH Accuracy
Enquiry

SMT placement machine Siemens ASM SIPLACE HS50 high-speed placement machine

,
1. The size of the parts that can be attached: from 0201 (0.25mmx0.5mm) to 18.7mmx18.7mm. 2. The types of parts that can be loaded at one time: 144 types (8mm parts). 3. SMT speed: 50,000 parts/hour. 4. Chip accuracy: ±0.075 (at 4sigma). 5. Material station: 144
Enquiry
