Samsung Mounter SM431 Pick&Place machine
Back to products
Langke S500 led chip placement machine Pick&Place machine

Langke K200 led chip placement Pick&Place machine

Enquiry
Categories: ,
Description

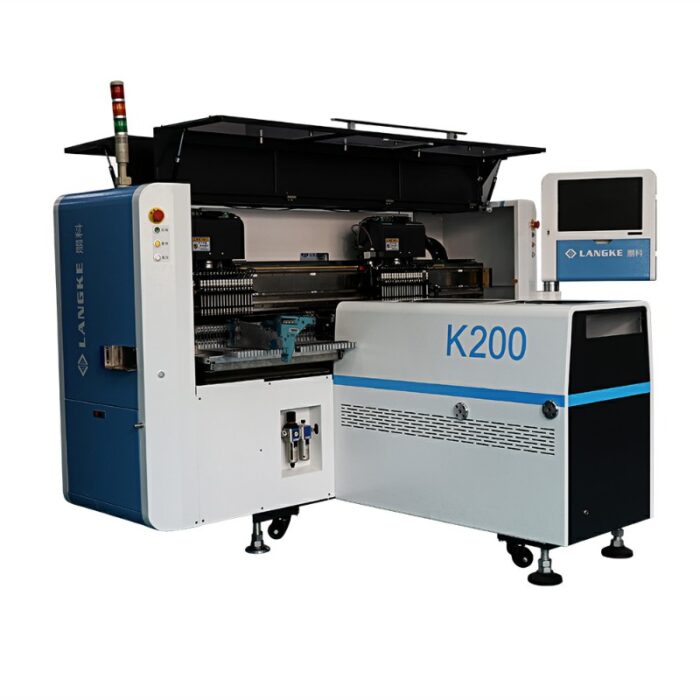

Maximum size of PCB board: 300*1200mm

Minimum size of PCB board: 60*300mm

PCB board thickness: 0.5-5mm

place method: group pick and separate place, group pick and group place

Operating system: Win XP, Win 7

Input: keyboard, mouse

Mounting accuracy: 0.05mm chip

SMD height: 13+-2mm

Minimum mounting pitch: 16mm

SMT speed: 200-240K CPH

Mounting parts range: with LED 3014/3020/3258/5050RGB, etc.

Vision system: visual automatic alignment, Mark correction

Component span: 0.2mm

Mounting head: 60 suction nozzles on both arms

Feeder can be placed: 30

Power supply: 220AC 50Hz

Electrical power: 3.5KW

Compressed air: 0.5Mpa

Use environment: 23+-2 degrees

Guide rail transmission: up to 1.2 meters

Transmission speed: greater than 320mm/s

Drive mode: XYZ axis servo motor control

Dimensions: 2650*1750*1400mm(L*W*H)

Weight: 2500KG

Scope of application: 1.2-1.5m LED fluorescent lamp, LED panel light, 0.5-1m LED flexible light strip, RGB advertising light strip, etc.



·
