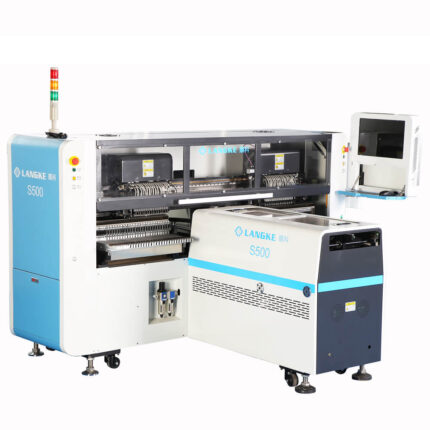

Langke S500 led chip placement machine Pick&Place machine
Back to products
Langke LK-T8 Mulit-function pick and place machine

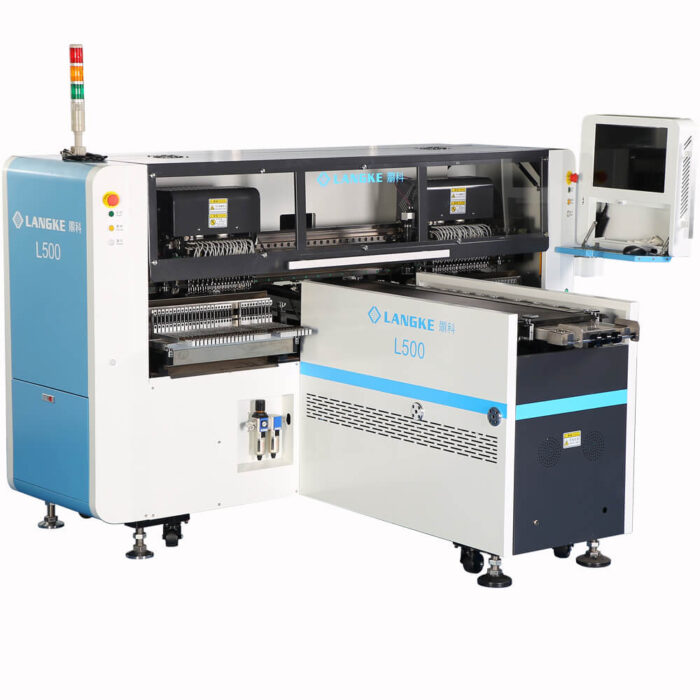

Langke L500 supper high speed placement pick and place machine for RGB wireless strip light

Enquiry
Categories: ,
Description
朤科L500无导线灯带贴片机
型号/Model L500
外观/Appearance
PCB
PCB尺寸/PCB Size 最大：W:280mm L:无限长
Max : W:280mm L: No limitation
PCB厚度/PCB thickness 0.3-5mm
PCB 定位/PCB Positioning CCD视觉，Mark点定位
CCD visual, Mark point positioning
PCB传送速度/PCB Transmitting Speed 320mm/s
PCB传送方向/

PCB Transmitting Direction

 前→后 Front to Back
贴装/Mounting
贴装头驱动/Mounting Head Driver 磁悬浮直线电机 Maglev linear motor
贴装头数量/Mounting Head Amount 2头 2Heads
吸嘴数量/Nozzles Amount 每头32个，共计64个 32 Pcs per head, totally 64Pcs
贴装精度/Mounting Accuracy ±0.03mm
贴片速度/Mounting Speed 250000 – 270000 CPH
重复精度/Repeat Accuracy ±0.01mm
最小贴片间距/Min Mounting Gap 6.5mm
贴片元件范围/Components Range 0805,1206,2835,3014,3528,5050,5630,5730,RGB等LED带装料;
0805,1206,2835,3014,3528,5050,5630,5730, RGB and other LED stripped material.
贴片元件高度/Component Height 10mm
飞达数量/Feeder Amount 48/64 Pcs
飞达种类/Feeder Type 双马达电动飞达 Dual motor electric feeder
贴装模式/Mounting Type 群取群贴 Group picking and group placing
进出板方式/PCB Input/Output Method 真空吸附+定位气缸传送 Vacuum Absorb + positioning cylinder transfer
系统/System
电脑系统/Computer System Windows
操作软件/Operating Software 朤科独立开发 Independent R&D by Langke
视觉系统/Visual System 5套光学相机(可选装视觉飞拍，漏料报警)

5 sets of optical camera（option: visual inspection for missing component alarm）
运动控制模块/Motion Control Module 固高/高川运动控制卡 Googol/Gaochuan Motion control card
X、Y轴驱动 日本富士电机 Japanese Fuji Servo Motor
工作要求/Working Requirement
电源/Power 交流50HZ，三相380V±10%; 380V AC/50Hz/3 Phase
最大耗电量/Max Power 5.0 KW
气压/Air Pressure 0.5-0.8Mpa
工作环境温度/Temperature 23℃±3
外形/Dimension
外形尺寸/Dimension 2970*2500*1550mm
重量/Weight 2203KG
