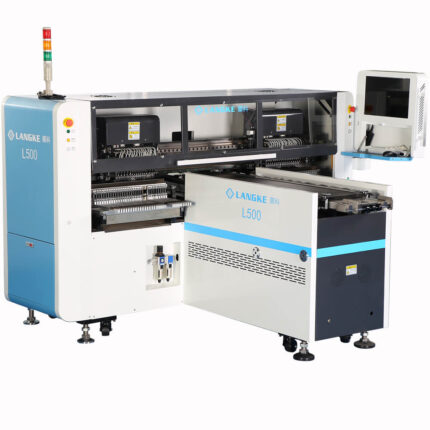

Langke L500 supper high speed placement pick and place machine for RGB wireless strip light
Back to products
ETON HT-F9 Magnetic levitation high-speed placement machine Pick&Place machine

Langke LK-T8 Mulit-function pick and place machine

Enquiry
Categories: ,
Description

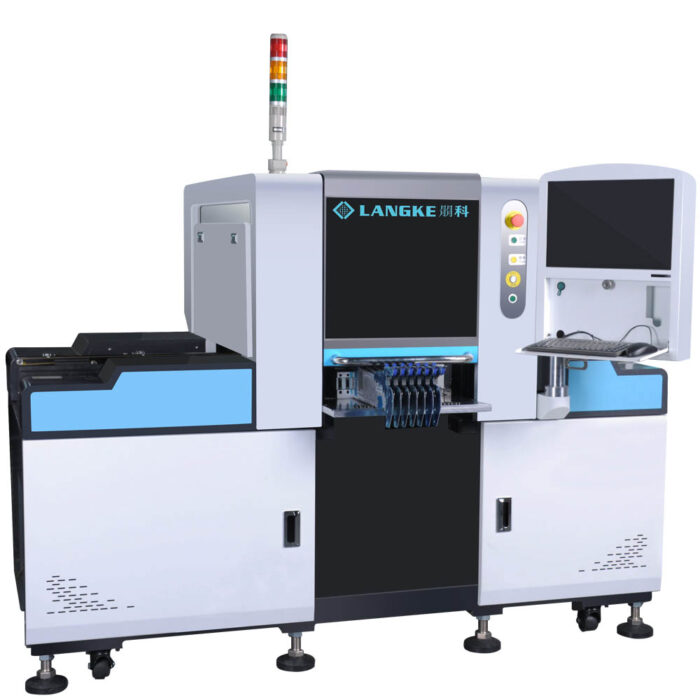

Mulit-function pick and place machine LK-T8

According to the faster technology progress of LED industrial, and the higher requirement about the products and quality, Langke Automation manufacture automatic mounter modelled LK-T8 with adopt import screw roll, linear guide rail and servo, as well as Mark positional vision.

Machine are equipped two kinds of working method：1. group pick and group mount, 2. group pick and separate mount. Make sure machine work in highly efficient and stable.

Usage:

Tube, FPCB strip light, light bar, bulb etc.

1.Control system: Industrial computer + motion-controlled card+ LED Screen

2.Software system: Chinese and English can be changed easily.

3.Motor: Fuji

4.Mount nozzle: suitable for different kinds of nozzles

5.Moving Equip: screw roll+ guide rail

6.Vision equip: Mark+ component recognized

7.Feeding: electric feeder

设备型号 Model LK-T8
最大电路板面积 PCB max size 1200(X)╳430(Y)╳25(Z)mm
Z轴最大移动范围 Z Axis max moving area 25mm
平台最大移动范围 Table max moving area 1200mm
最大贴片速度 max mounting speed 26000CPH
定位精度 positional accuracy 0.05mm
吸嘴缓冲范围 4.0
电源 Power 220V/50Hz
控制方式 Control method 电脑 computer
压缩空气 Air pressure 0.65-0.75Mpa
平均功率 Average power 2KW
喂料器 feeding 电动飞达 electric feeder
贴装头部驱动电机 mounting head driving motor 富士交流伺服电机 Fuji AC servo motor
贴装头 mounting head 8头 8 heads
可装飞达数量 feeder quantity 14 pcs
元件角度 component angle 任意角度 any angle
气源 Air source 进口真空泵 Vacuum pump
操作系统编程方式 OS program method 朤科自动研发，界面简单易学易懂，视觉编程
重量 weight 2000KG
外观尺寸（长*宽*高） dimension 2040mm*1300mm*1500mm
