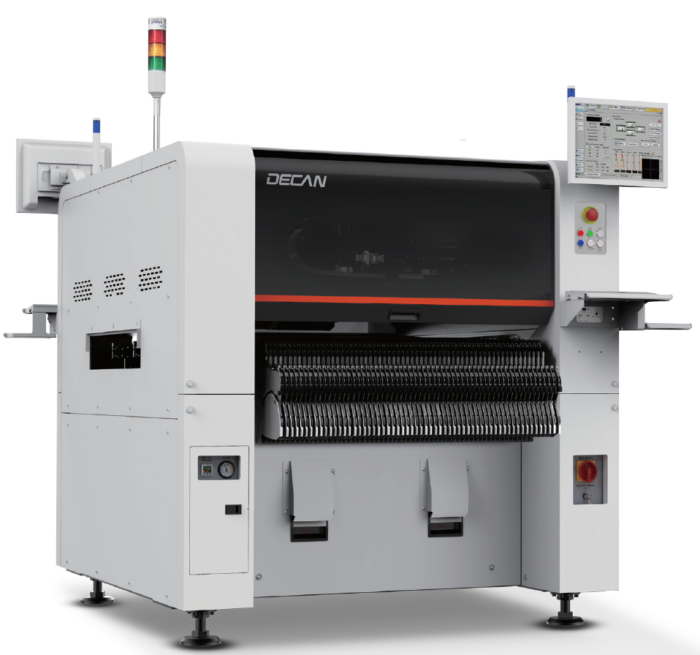

Samsung Hanwha High Speed ​​Mounter DECANS2

Samsuang Hanwha DECAN F2

Specifications

Alignment
Fly Camera, Fix Camera
Spindle & Speed
2 Gantry * 10 Spindles / 80,000 CPH
Accuracy
±40µm Cpk≥1.0 (0402 (01005 inch) chip) /±30µm Cpk≥1.0 (IC, Stage Vision)
Component Range
Fly: 0402 ~ □16 mm / Fix: ~□42 mm (Standard) / ~□55 mm (MFOV) / ~ L75 mm Connector (MFOV)
Dimension
L 1,430 x D 1,740 x H 1,995
Enquiry
Categories: ,
Description

Features

  • 이미지

    Productivity

    Dual Lane PCB Transfer System
    Realizes zero PCB loading/unloading time by loading the PCB on the opposite lane and having it stand by during operation (productivity increases by 15% compared to a single lane)

  • 이미지

    Flexible Production

    Supporting Modular Conveyor System for Various Production Environments
    Allows optimum combination of conveyor modules by applying a modular conveyor replaceable on site (Shuttle ↔ Dual).

  • 이미지

    High Reliability

    Prevents Reverse Insertion by Recognizing the Polarity Mark at the Bottom Surface of a Component
    Recognizes the polarity mark at the bottom surface of a component using the 3-stepped 3D lighting.
Shipping & Delivery

MAECENAS IACULIS

Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.

ADIPISCING CONVALLIS BULUM

  • Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
  • Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
  • Diam parturient dictumst parturient scelerisque nibh lectus.

Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.

Reviews

There are no reviews yet.

Be the first to review “Samsuang Hanwha DECAN F2”

Your email address will not be published. Required fields are marked *

Related products

Yamaha Wide-Range Compact Modular YC8 Mounter placement machine

,

Specifications

YC8
Applicable PCB L50 x W50mm to L330 x W360mm *1
Mounting accuracy When using Yamaha's standard components Absolute accuracy (μ+3σ):+/-0.05mm /QFP Repeatability(3σ) +/-0.03mm /QFP
Mounting capability Indication 2.5sec/component (Cycle time from a pickup to mounting with recognition)
Applicable components 4 x 4mm to 100 x 100mm *2 (Some components larger than 45 x 45mm ane conditional) Maximum components heights 45mm Maximum payload 1kg
Component supply configuration: Number of component types Tape reel : MAX. 28 types (8mm width) Tray : MAX. 15 trays Stick
Power supply 3-Phase AC 200/208/220/240/380/400/416V　+/-10%　50/60Hz
Air supply source 0.45MPa or more, in clean, dry states
External dimension (excluding projections) L 880 x W1,440 x H1,445mm (Main unit only) L 880 x W1,755 x H1,500mm (When ATS15 is installed)
Weight Approx. 1,000kg (Main unit only) ATS15 : Approx. 120kg
*1
Please consult us separately for maximum board sizes.
*2
Consult us separately regarding component sizes outside the specifications.
Specifications and appearance are subject to change without prior notice.
Enquiry

Yamaha Premium Modular Σ-G5SⅡ Mounter placement machine

,

Specifications

∑-G5SⅡ
Applicable PCB Single lane L610×W510 mm to L50×W50 mm (Optional: L1,200×W510 to L50×W50 mm)
Dual lane L610×W250 mm to L50×W84mm (dual feed) L610×W415mm (single feed)
Mounting capability High-Speed Multi-Head×2 specifications: 90,000 CPH (single lane/dual lane)
Mounting accuracy (Under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used) High-Speed Multi (HM) Head 0201mm/03015mm: ±25μm/80,000 CPH 0402mm: ±36 μm/85,000 CPH 0603mm: ±40 μm/90,000 CPH
Flexible Multi (FM) Head ±15μm
Applicable components High-Speed Multi (HM) Head 0201mm to L44×W44×H12.7 mm or under
Flexible Multi (FM) Head 1005mm to L72×W72×H25.4 mm or under Connector: 150×26 mm
Number of component types 120 types max. (8 mm wide tape equivalent)
Power supply 3-phase AC200V ±10%, 50/60Hz
Air supply source 0.45 to 0.69 MPa (4.6 to 7 kgf/cm²)
External dimension (excluding projections) L 1,280 x W 2,240 x H 1,450mm
Weight Approx. 1,800 kg
Specifications and appearance are subject to change without prior notice.

Enquiry

Panasonic NPM-W2 Multifunctional Mounter placement machine

,
Product Features of Panasonic NPM-W2 Multi-Function Mounter 1. Install & inspect a complete system to achieve efficient and high-quality production To match the actual installation requirements, you can choose high-yield or high-precision mode 2. Can correspond to larger substrates and large components Correspondingly, on a large substrate of 750×550 mm, the component range is also expanded to L150×W25×T30mm 3. Double-track installation (select specifications) to achieve high productivity per unit area According to the production substrate, you can choose independent mounting, alternate mounting, mixed mounting and other mounting methods
Enquiry

Panasonic Mounter CM602-L high-speed placement machine

,
Control mode: microcomputer mode External memory: Manage data at PT∗4. Each set of data requires about 1MB. (1 type is required for each 1 type 3.5 2HD floppy disk) Program data: Points Max. 10000 points CM602 power supply Power supply for normal use: 3-phase AC 200 V/ 220 V ±10 V, 3-phase AC 380 V/ 400 V/ 420 V/ 480 V ±20 V Frequency: 50/60 Hz Power supply for HUB ∗ 3: Single-phase AC 100 V ~ AC 240 V Frequency: 50/60 Hz Rated capacity: main machine 4.0 kVA / HUB power supply ∗ 3: 140 VA Supply air pressure: 0.49 MPa ~ 0.78 MPa (operating air pressure is 0.49 MPa ~ 0.54 MPa) Supply air volume: 170 L/min (A.N.R.) Dimensions: 2350 mm (W) × 2690 mm (D) × 1430 mm (H) (excluding 3-section signal tower and color touch panel) quality: Mass of the main engine: 3400 kg (140 kg for the standard configuration without the overall exchange trolley) Overall exchange trolley mass: 140 kg (per 1) Direct tray feeder mass: 195 kg (per 1 unit) Standard composition mass: 3960 kg (1 main engine, 4 overall exchange trolleys) Environmental conditions: Temperature: 10°C ~ 35°C Humidity: 25% RH ~ 75% RH (but water vapor does not condense) Transport and storage conditions: Temperature: −20°C ~ 60°C Humidity: Below 75 % RH (but water vapor does not condense) Altitude: from 0 m above sea level to below 1000 m Noise: < 70dB (A)
Enquiry

Yamaha High-efficiency Modular Z:LEX YSM20R Mounter placement machine

,

Specifications

Model YSM20R
Applicable PCB Single lane L810 x W490 to L50 x W50 Dual stage  Note: For X-axis 2-beam option only 1PCB conveyance: L810 x W490 to L50 x W50 2PCB conveyance: L380 x W490 to L50 x W50
Head / Applicable components High-Speed Multi (HM) Head * 0201mm to W55 x L100mm, Height 15mm or less Odd-shaped components (FM: Flexible Multi) head: 03015mm to W55 x L100mm, Height 28mm or less
Mounting capability (under optimum conditions as defined by Yamaha Motor) X axis 2-beam: High-speed multi-purpose (HM: High-speed Multi) head x 2 95,000CPH
Mounting accuracy ±0.035mm (±0.025mm) Cpk≧1.0 (3σ) (under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used)
Number of component Types Fixed plate: Max. 140 types (conversion for 8mm tape feeder) Feeder carriage exchange: Max. 128 types (conversion for 8mm tape feeder) Trays for 30 types (Fixed type: max., when fitted with sATS30) and 10 types (Carriage type: max., when fitted with cATS10)
Power supply 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz
Air supply source 0.45MPa or more, in clean, dry state
External dimension (excluding projections) L 1,374 x W 1,857 x H1,445mm (Main unit only)
Weight Approx. 2,050kg (Main unit only)
Enquiry

Samsung Hanwha HM520 mounter placement pick and place machine

,

Specifications

Alignment
Fix Camera
Number of Spindles
20 spindles x 2 Gantry (Rotary Type)
Placement Speed
80,000 CPH
Placement Accuracy
±25 μm @ Cpk ≥ 1.0 (Chip)
Component Range
0201 ~ □ 6 mm
Enquiry

Yamaha Ultra-High-Speed Modular Z:TA-R YSM40R Mounter placement machine

,

Specifications

Z:TA-R YSM40R
4-Beam, 4-Head Spec. (YSM40R-4)
Applicable PCB L700×W460mm to L50×W50mm
Mounting capability (under optimum conditions as defined by Yamaha Motor) 200,000CPH (When using RS head)
Applicable components Ultra-High-Speed (RS) Head 0201mm* to □6.5mm (Height 2.0mm or less) *option
Multi (MU) Head 03015mm to 45×60mm (Height 15mm or less)
Mounting accuracy (Under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used) +/-35μm (25μm) Cpk ≧1.0 (3σ)
Number of component types * 8mm width tape conversion Max. 80 feeders with RS heads Max. 88 feeders with MU heads Max. 84 feeders with RS x 2 + MU x 2 heads
Power supply 3-Phase AC 200/208/220/240/380/400/416V +/-10%
Air supply source 0.45MPa or more, in clean, dry state
External dimension L1,000×W2,100×H1,550mm (excluding projections)
Weight Approx. 2,100 kg
Enquiry

Yamaha Compact High-speed Modular YSM10 Mounter placement machine

,
YSM10
Applicable PCB L 510 x W 460mm - L 50 x W 50mm Note : Available in lengths up to L950mm as an option.
Applicable components 03015mm to W55 x L100mm (For parts sizes larger the width 45mm, recognition of parts is divided into sections.), Height 15mm or less Note : A multi camera (option) is required for part heights exceeding 6.5mm or part sizes exceeding 12mm
Mounting capability HM head (10 nozzle) specification : 46,000CPH (under optimum conditions as defined by Yamaha Motor) HM 5 head (5 nozzle) specification : 31,000CPH (under optimum conditions as defined by Yamaha Motor)
Mounting accuracy (Under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used) +/-0.035mm (+/-0.025mm) Cpk 1.0 (3σ)
Number of component types Fixed plate : Max. 96 types (conversion for 8mm tape feeder) Note 1 Tray : 15 types (maximum when equipped with sATS15, JEDEC)
Power supply 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz
Air supply source 0.45MPa or more, in clean, dry state
External dimension L1,254 x W1,440 x H1,445mm
Weight Approx. 1,270kg
Enquiry
