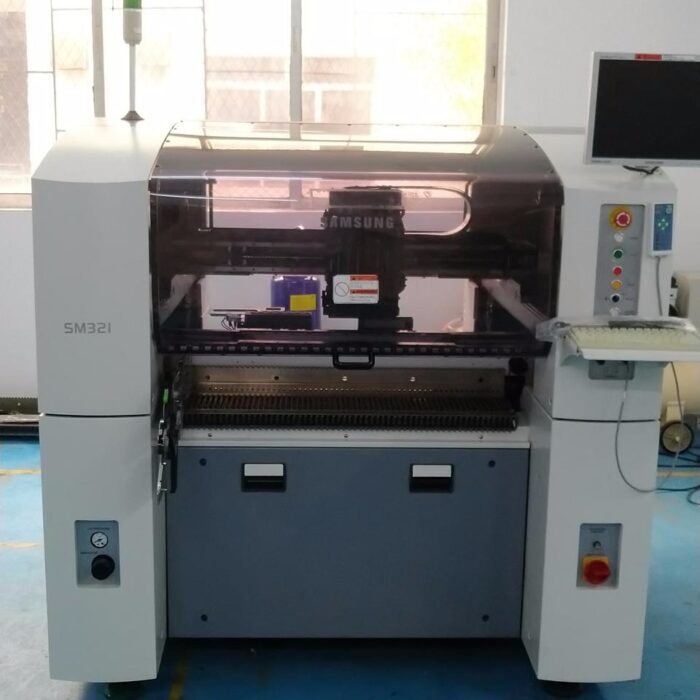

Mounting speed of Samsung placement machine SM321: 1608CHIP: 21K CPH (IPC)
1005CHIP: 20K CPH(IPC)
SOP16: 15K CPH(IPC)/feeder
QFP100: 5.5K CPH(IPC)/tray
Mounting accuracy of Samsung placement machine SM321:
CHIP:±50? (0402@3σ)
QFP:±30? (QFP168@3σ)
The PCB board size of the Samsung placement machine SM321:
460 x 400 x 4.2 ~ 50 x 40 x 0.38 (weight 3 kg)
510 x 460 x 4.2 ~
Number of feeders: Max. 120 EA
Dimensions: L1, 650 x D1, 680 x H1, 530
Weight of SM321: 1800KG
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
| ∑-G5SⅡ | ||
|---|---|---|
| Applicable PCB | Single lane | L610×W510 mm to L50×W50 mm (Optional: L1,200×W510 to L50×W50 mm) |
| Dual lane | L610×W250 mm to L50×W84mm (dual feed) L610×W415mm (single feed) | |
| Mounting capability | High-Speed Multi-Head×2 specifications: 90,000 CPH (single lane/dual lane) | |
| Mounting accuracy (Under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used) | High-Speed Multi (HM) Head | 0201mm/03015mm: ±25μm/80,000 CPH 0402mm: ±36 μm/85,000 CPH 0603mm: ±40 μm/90,000 CPH |
| Flexible Multi (FM) Head | ±15μm | |
| Applicable components | High-Speed Multi (HM) Head | 0201mm to L44×W44×H12.7 mm or under |
| Flexible Multi (FM) Head | 1005mm to L72×W72×H25.4 mm or under Connector: 150×26 mm | |
| Number of component types | 120 types max. (8 mm wide tape equivalent) | |
| Power supply | 3-phase AC200V ±10%, 50/60Hz | |
| Air supply source | 0.45 to 0.69 MPa (4.6 to 7 kgf/cm²) | |
| External dimension (excluding projections) | L 1,280 x W 2,240 x H 1,450mm | |
| Weight | Approx. 1,800 kg | |
| Model | YSM20R |
|---|---|
| Applicable PCB | Single lane L810 x W490 to L50 x W50 Dual stage Note: For X-axis 2-beam option only 1PCB conveyance: L810 x W490 to L50 x W50 2PCB conveyance: L380 x W490 to L50 x W50 |
| Head / Applicable components | High-Speed Multi (HM) Head * 0201mm to W55 x L100mm, Height 15mm or less Odd-shaped components (FM: Flexible Multi) head: 03015mm to W55 x L100mm, Height 28mm or less |
| Mounting capability (under optimum conditions as defined by Yamaha Motor) | X axis 2-beam: High-speed multi-purpose (HM: High-speed Multi) head x 2 95,000CPH |
| Mounting accuracy | ±0.035mm (±0.025mm) Cpk≧1.0 (3σ) (under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used) |
| Number of component Types | Fixed plate: Max. 140 types (conversion for 8mm tape feeder) Feeder carriage exchange: Max. 128 types (conversion for 8mm tape feeder) Trays for 30 types (Fixed type: max., when fitted with sATS30) and 10 types (Carriage type: max., when fitted with cATS10) |
| Power supply | 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz |
| Air supply source | 0.45MPa or more, in clean, dry state |
| External dimension (excluding projections) | L 1,374 x W 1,857 x H1,445mm (Main unit only) |
| Weight | Approx. 2,050kg (Main unit only) |
| S10 | S20 | |
|---|---|---|
| Board size(with buffer unused) | Min. L50 x W30mm to Max. L1,330 x W510mm (Standard L955) | Min. L50 x W30mm to Max. L1,830 x W510mm (Standard L1,455) |
| Board size(with input or output buffer used) | Min. L50 x W30mm to Max. L420 x W510mm | - |
| Board size(with input and output buffers used) | Min. L50 x W30mm to Max. L330 x W510mm | Min. L50 x W30mm to Max. L540 x W510mm |
| Board thickness | 0.4 - 4.8mm | 0.4 - 4.8mm |
| Board flow direction | Left to right (Std) | Left to right (Std) |
| Board transfer speed | Max 900mm/sec | Max 900mm/sec |
| Placement speed (12 heads + 2 theta) Opt. Cond. | 0.08sec/CHIP (45,000CPH) | 0.08sec/CHIP (45,000CPH) |
| Placement accuracy A (μ+3σ) | CHIP +/-0.040mm | CHIP +/-0.040mm |
| Placement accuracy B (μ+3σ) | IC +/-0.025mm | IC +/-0.025mm |
| Placement angle | +/-180 degrees | +/-180 degrees |
| Z axis control / Theta axis control | AC servo motor | AC servo motor |
| Component height | Max 30mm*1 (Pre-placed components: max 25mm) | Max 30mm*1 (Pre-placed components: max 25mm) |
| Applicable components | 0201mm – 120x90mm, BGA, CSP, connector, etc. (Standard 01005 -) | 0201mm – 120x90mm, BGA, CSP, connector, etc. (Standard 01005 -) |
| Component package | 8 - 56mm tape (F1/F2 Feeders), 8 - 88mm tape (F3 Electric Feeders), stick, tray | 8 - 56mm tape (F1/F2 Feeders), 8 - 88mm tape (F3 Electric Feeders), stick, tray |
| Drawback check | Vacuum check and vision check | Vacuum check and vision check |
| Screen language | English, Chinese, Korean, Japanese | English, Chinese, Korean, Japanese |
| Board positioning | Board grip unit, front reference, auto conveyor width adjustment | Board grip unit, front reference, auto conveyor width adjustment |
| Component types | Max 90 types (8mm tape), 45 lanes x 2 | Max 180 types (8mm tape), 45 lanes x 4 |
| Transfer height | 900 +/- 20mm | 900 +/- 20mm |
| Machine dimensions, weight | L1250xD1750xH1420mm, Approx. 1,200kg | L1750xD1750xH1420mm, Approx. 1,500kg |
