SMT placement machine ASM Siemens placement machine TX2i/TX2/TX1

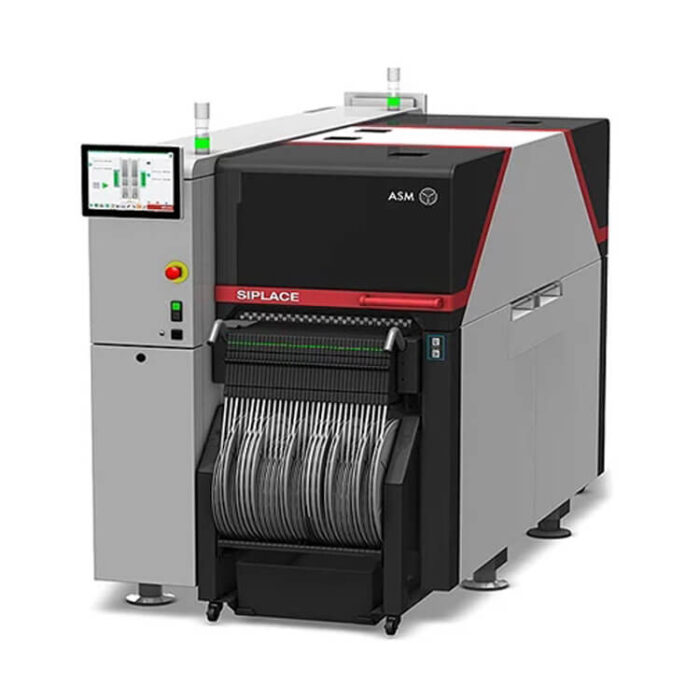

Introduction to ASM Siemens Mounter TX2i: ASM Siemens Mounter TX2i: Provide high performance and high precision in a very small footprint. The ASM Siemens Mounter TX2i mounter module sets a new benchmark for mass production. No other placement solution can achieve 25 µm @ 3 sigma accuracy at speeds up to 96,000 cph in such a small footprint (only 1m x 2.3m).

Enquiry

ASM Siemens TX placement machine, Siemens X series placement machine, ASM Siemens placement machine TX2i technical parameters:

machine characteristics	SIPLACE TX2i	SIPLACE TX2	SIPLACE TX1
Mounting speed (reference speed)	UP TO 96,000 cph	UP TO 85,500 cph	UP TO 44,000 cph
Machine Dimensions (L x W x H)	1.0 x 2.23 x 1.45 m	1.0 x 2.35 x 1.45 m
placement head	SIPLACE SpeedStar (CP20P2), SIPLACE MultiStar (CPP), SIPLACE TwinStar (TH)
Component range	0.12 mm x 0.12 mm to 200** mm x 125 mm
PCB Dimensions (L x W)	50 mm × 45 mm to 550** × 260 mm (double track) 50 mm × 45 mm to 550* × 460 mm (monorail mode)
Feeding method	UP TO 80 × 8 mm tape FEEDER, JEDEC trays, linear dipping unit, Dispensing feeder
耗电量	1.6 KW (Equipped with vacuum pump + frequency converter) 1.2 KW (Without vacuum pump)
耗气量	120 Nl/min (Equipped with vacuum pump)		70 Nl/min (Equipped with vacuum pump)
* Longboard option (non-longboard option, maximum PCB length is 375 mm) ** With restrictions

placement head	SIPLACE SpeedStar (CP20P2)	SIPLACE MultiStar (CPP)	SIPLACE TwinStar (TH)
Component range	0.12 mm x 0.12 mm to 8.2 mm x 8.2 mm	01005 to 50 mm x 40 mm	0201 to 200 mm x 125 mm
Component height	4 mm*	11.5 mm	25 mm
Mounting accuracy (3 σ)	25 µm	34 µm	22 µm
Best Performance (Baseline Speed)	48,000 cph	25,500 cph	5,500 cph
Mounting pressure	0.5 N to 4.5 N	1.0 N to 10 N	1.0 N to 15 N
*2 mm on SIPLACE TX2i
