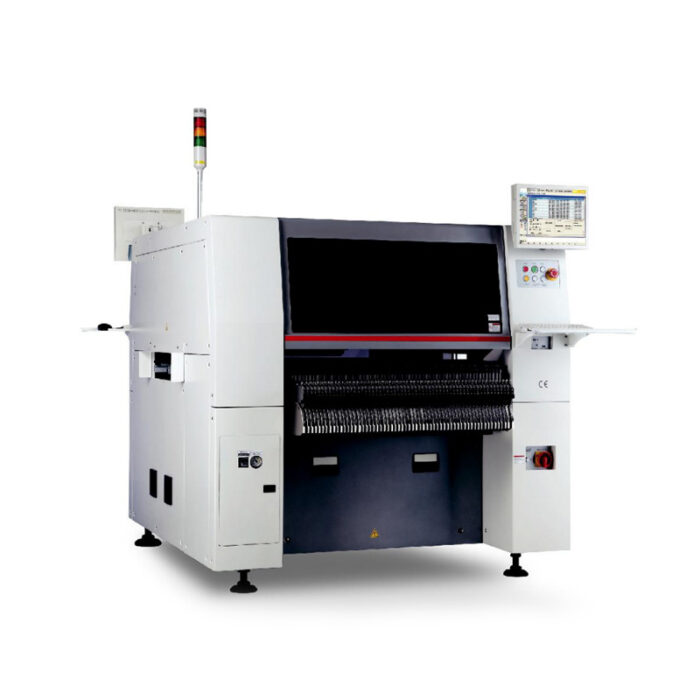

SMT placement machine Samsung placement machine SM471Plus

High-performance chip shooter with a new fly camera
· World’s highest speed of 78,000CPH among chip shooters of the same class
· With two gantry dual-lane construction, supports various production modes

Specifications

Alignment
Fly Camera
Spindle & Speed
2 Gantry * 10 Spindle / 78,000 CPH
Accuracy
±40μm@±3σ (Chip) / ±50μm@±3σ (QFP)
Component Range
0402 ~ □14mm
Dimension
L 1,650 x D 1,690 x H 2,045
Enquiry
Categories: Samsung Hanwha, SMT placement machine
Share:
  • Description
  • Shipping & Delivery
Description

Features

  • 이미지

    Productivity

    On-the-fly Placement Method
    Possible to recognize a component without stopping while moving after component pickup Minimizes the moving time between pickup and placement positions and ensures zero recognition time
  • 이미지

    Performance

    Dual Lane Shuttle Conveyor
    Maximizes the productivity of small boards through dual lane production Secures scalability to large boards using a shuttle conveyor
  • 이미지

    Reliability

    Component Monitoring before/after Placement
    Inspect a nozzle for contamination during production to prevent non-inserted and dumped components in advance.
  • 이미지

    Easy Operation

    Easy Component Registration (New Part Editor)
    Possible to register component information with the clicking of a mouse by applying a Drag & Drop based component registration system
Shipping & Delivery
wd-ship-1
wd-ship-2

MAECENAS IACULIS

Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.

ADIPISCING CONVALLIS BULUM

  • Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
  • Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
  • Diam parturient dictumst parturient scelerisque nibh lectus.

Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
