Universal Instruments Genesis GC-60 Pick & Place Machine
Back to products

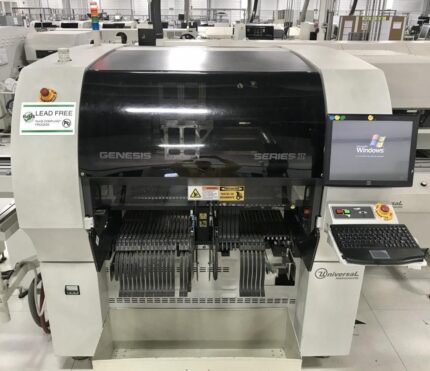

Universal Instruments Genesis GX-11S Pick & Place Machine

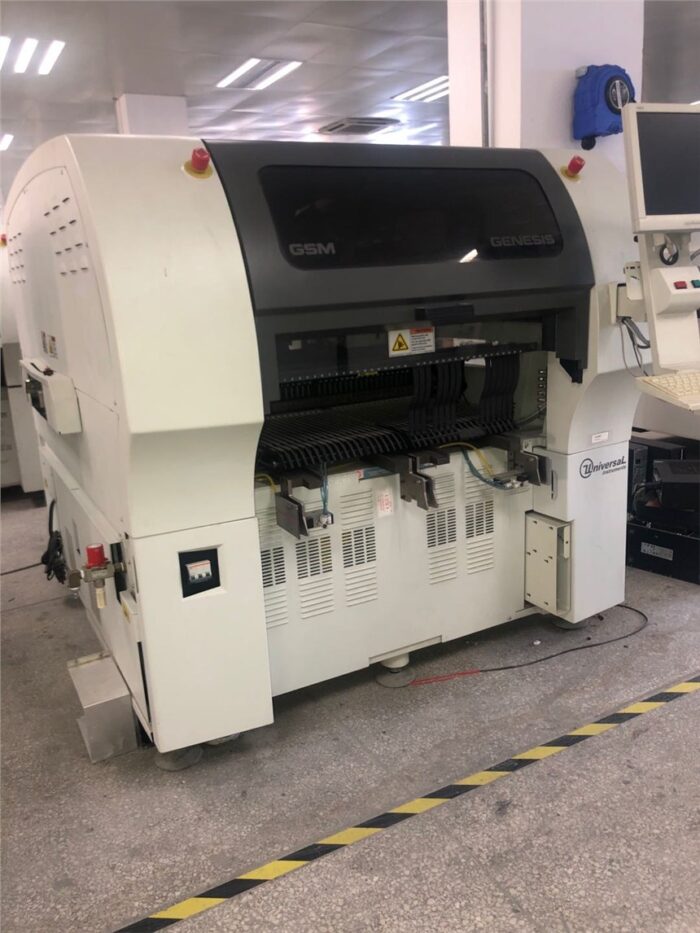

Universal Instruments Genesis GC-30 Pick & Place Machine

Enquiry
Categories: ,
Description

SMT speed: 0.1sec/piece,
Theoretical placement speed: up to 35000 components/hour, minimum 22600 components/hour
Placement head: 2 gantry high-speed placement heads
PCB size: W50.8×L50.8mm-W610×L1016mm
PCB weight: 2.72kg
Component placement range: 01005-W30×L30×H6mm
SMT accuracy: ±0.042mm
Weight: 3250kg
Machine size: W1676×L2248×H1930mm

Genesis GC-30S – Single gantry series product with a 30-axis Lightning head.
Product description: It is suitable for high-mix new product introduction, multiple transfer lines, and operation of large board applications. It can also be used as a platform to increase the output of D and Q series high-volume production lines.
*Single gantry, double drive high arch system
* Patented VRM linear motor technology positioning system
*One 30-axis rotating Lightning placement head
*The placement head is equipped with two cameras
