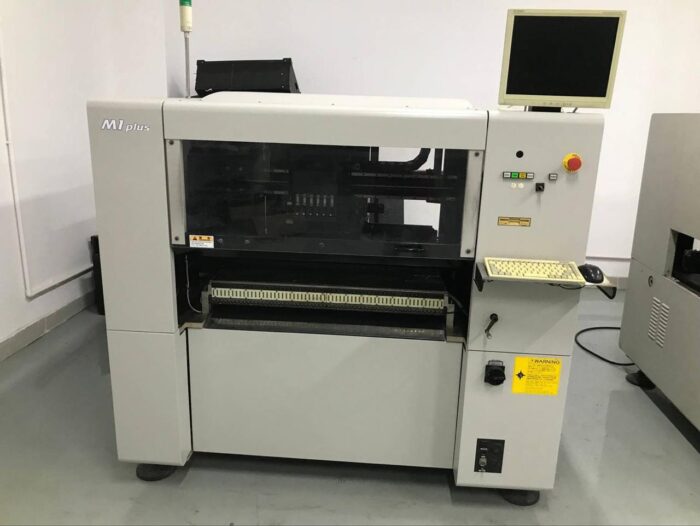

Yamaha I-Pulse M1 pick&place machine placement mounter.

Specifications:

  1. Board Size(LxWxT)mm Max.460 x 410 x 2.0㎜,Min.50 x 50 x 0.5㎜
  2. Conveyor flow/speed  →  420㎜/sec(with soft-stop)
  3. Tact Time 0.16sec/chip,0.38sec/TSOP(32pin)
  4. Up ward Vision :0.75sec/QFP(100pin)
  5. Repeat ability ±0.06㎜(chip),±0.035㎜(IC)
  6. Mounting angle ±180°,  0.02°increment
  7. Max.component height 15mm
  8. Components applicable 0603 ~  SOP,PLCC,QFP,BGA and CSP,connector
  9. Component packaging 8 ~  56㎜  tape,stick,bulk and tray
  10. No.of component types 120 type (8㎜  tape)
  11. Board transfer height 900±20㎜
  12. Dimensions(LxWxH)mm 1750 x 1500 x 1846
  13. Weight ±1,800㎏
  14. Power supply 200V±10%  3Phase AC50/60Hz,4.0kVA
  15. Air supply 0.5MPa,69Nℓ/min
