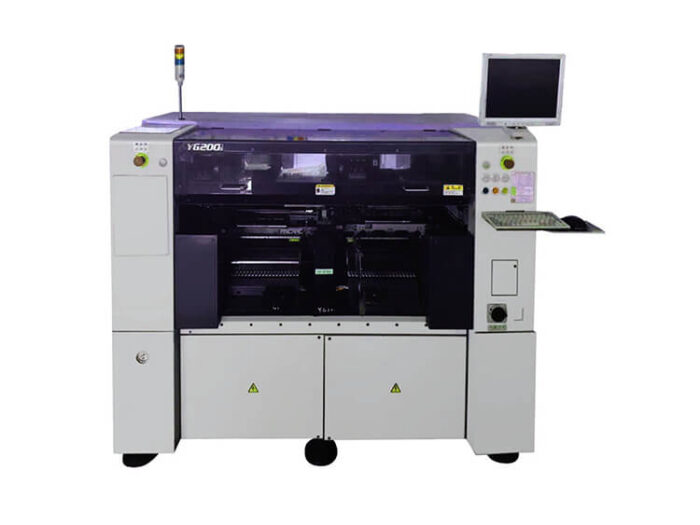

YAMAHA Mounter YG200 PLACEMENT MACHINE

YAMAHA Mounter YG200 Features:
(1) Ultra-high-speed and high-precision placement machine;
(2) 0.08 seconds/CHIP ultra-high-speed placement (best condition);
(3) Under the state of IPC9850, the placement speed is as high as 34800CPH;
(4) Ensure that the placement accuracy of the whole process is as high as ±50 microns, and the repeatability of the whole process is as high as ±30 microns;
(5) Mounting ranges from 0201 (inch) micro components to 14mm components;
(6) Use 4 high-resolution multi-vision digital cameras;
(7) You can choose the flying nozzle head with YAMAHA patent, which can effectively reduce the machine idling loss;
(8) The best choice for ultra-high-speed production;

Detailed introduction of YAMAHA placement machine YG200:
Corresponding substrate: L330*W250mm</p>
Mounting speed: 45000CPH (equivalent to 0.08 seconds/CHIP)
Mounting accuracy: maximum accuracy 3&sigma 0.05mm/CHIP
Repeatability (3&sigma): 0.03mm/CHIP
Corresponding originals: 0402~14mm originals, components with a height of less than 6.5mm can be mounted, and the allowable height on the front substrate is less than 6.5mm
Number of component varieties: 80 kinds
Power specification: three phase
Air supply source: above 0.55MPa, the air is clean and dry
Dimensions: L1950*W1408*H1450
Host weight: about 2080kg
